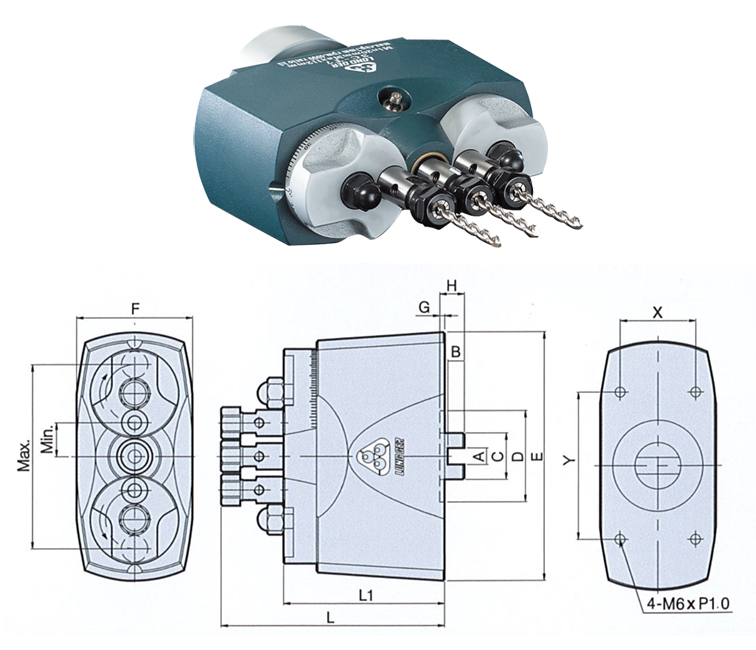

MULTI HEAD: 3 SPINDLE 22.0 -82.0MM LONG GER (CIRCULAR)
MULTI HEAD: 3 SPINDLE 22.0 -82.0MM LONG GER (CIRCULAR) $2,200.00
Click to enlarge

Availability : Enquire Now

Price per Unit

ex-gst

$2,400.00

Inc-gst

$2,760.00
Print
Description

SKU : MSH200210

Price per Unit

$2,400.00 (Exc GST)

$2,760.00 (Inc GST)

FEATURES:

* This is a 3 spindle (circular) boring head
* Range is from 36.0 – 200mm
* Flange mount to machine with opional drive tapers of MT 1, 2,3,4 tapers
* Collet fixing for drill bits
* Other configerations available


Weight 15 kg
Dimensions 0.28 × 0.21 × 0.21 cm
Compare
Add to wishlist
Specifications
Description
DESCRIPTIOM 3 Spindle (Circular) Multi Head
MODEL 3C-T16
CAPACITY 1.0 – 14.0mm
SPINDLES 3 Spindles
RANGE Spacing: 36.0mm~200mm
HEAD MOUNT Flange
DRIVE TAPER MT 1, 2, 3, 4 (Options)
DRILL MOUNT Collet
WEIGHT NETT/GROSS 14.7/15.0kg
VOLUME 0.0123kg
