| DESCRIPTIOM | 3 Spindle (Circular) Multi Head |
|---|---|
| MODEL | 33C-T16 |
| CAPACITY | 1.0 – 14.0mm |
| SPINDLES | 3 Spindles |
| RANGE | Spacing: 52.0mm~180mm |
| HEAD MOUNT | Flange |
| DRIVE TAPER | MT 1, 2, 3, 4 (Options) |
| DRILL MOUNT | Collet |
| WEIGHT NETT/GROSS | 15.5/16.0kg |
| VOLUME | 0.0119cm |
Description
SKU : MSH200316
Price per Unit
$2,300.00 (Exc GST)
$2,645.00 (Inc GST)
FEATURES:

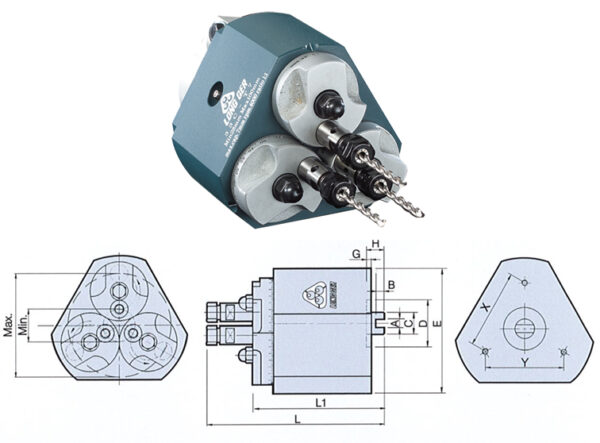

* This is a 3 spindle (circular) boring head
* Range is from 36.0 – 200mm
* Flange mount to machine with opional drive tapers of MT 1, 2,3,4 tapers
* Collet fixing for drill bits
* Other configerations available on request
| Weight | 16 kg |
|---|---|
| Dimensions | 0.27 × 0.21 × 0.21 cm |
