| DESCRIPTIOM | 3 Spindle (Circular) Multi Head |
|---|---|
| MODEL | 33C-W22 |
| CAPACITY | ∅10 mm |
| SPINDLES | 3 Spindles |
| RANGE | Spacing: 22.0mm~82.0mm |
| HEAD MOUNT | Flange |
| DRIVE TAPER | MT 1, 2, 3, 4 (Options) |
| DRILL MOUNT | Collet |
| WEIGHT NETT/GROSS | 4.6/4.8kg |
| VOLUME | 0.0104cm |
Description
SKU : MSH200301
Price per Unit
$2,200.00 (Exc GST)
$2,530.00 (Inc GST)
FEATURES:
* This is a 3 spindle (circular) boring head
* Range is from 22.0 – 82mm

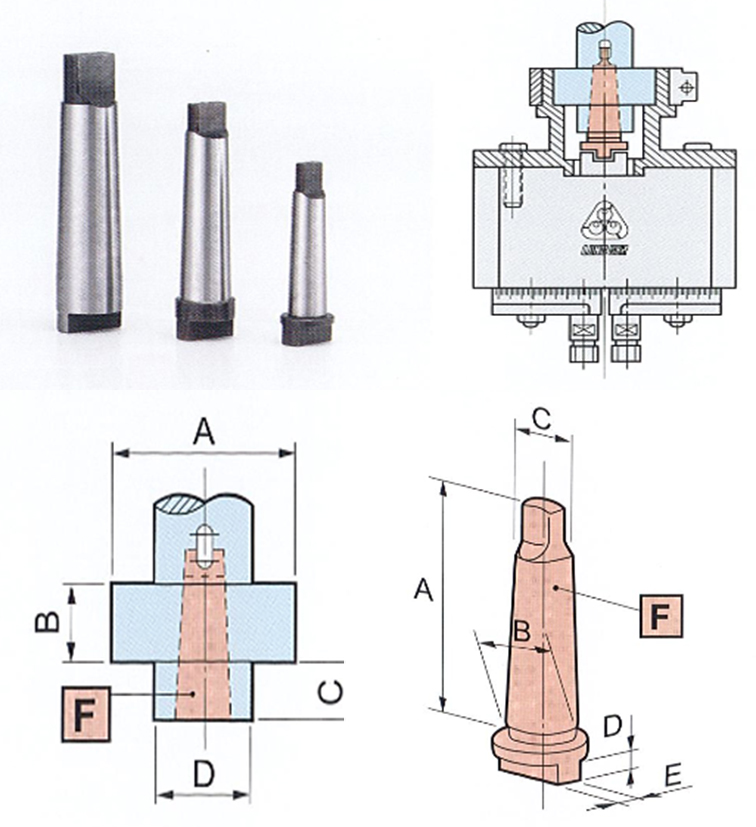

* Flange mount to machine with opional drive tapers of MT 1, 2,3,4 tapers
* Collet fixing for drill bits
* Other configerations available on request
| Weight | 4.8 kg |
|---|---|
| Dimensions | 0.26 × 0.2 × 0.2 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
MULTI HEAD: 4-SPINDLE 18.0-100MM CHEN FWA
SKU:
MSH100700

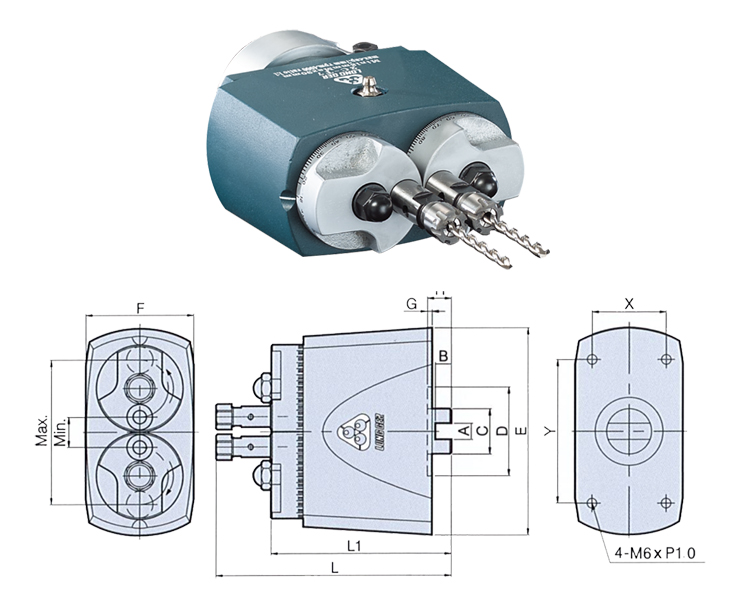

MULTI HEAD: 2-SPINDLE 36.0 – 164MM LONG GER
