| CUTTING WIDTH | 410mm |
|---|---|
| CUTTING HEIGHT | 220mm |
| MIN LENGTH | 200mm |
| MAX CUTTING DEPTH | 5.0mm |
| FEED SPEEDS | 2 |
| FEED RATE | 4.8-8.4 M/Min |
| TABLE SIZE | 410 x 750mm |
| KNIVES | 4 |
| SPEED | 4050rpm |
| MOTOR | 4hp Single phase |
| WEIGHT NETT/GROSS | 240 / 269kg |
| VOLUME | 0.8932cm |
| PACKING SIZE L X W X H | 1100 x 700 x 1160mm |

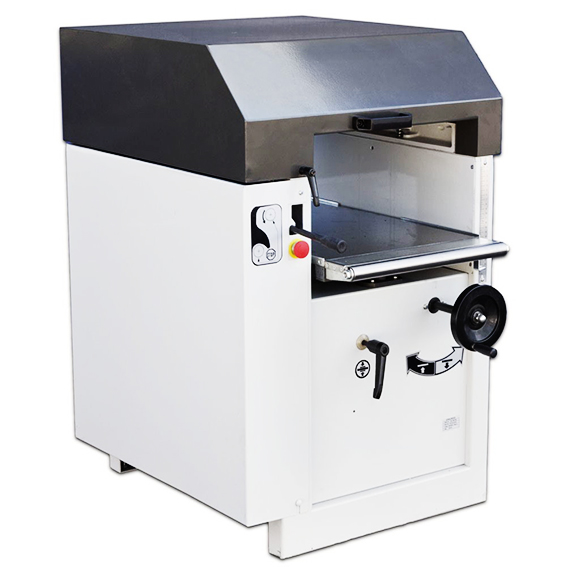

PLANER: TANNER 12" 1.5KW 1PH
$1,600.00
PLANER: TANNER 16" 2.5HP 1PH MOTOR UNDER
$2,900.00
Description
SKU : TKN112600
Price per Unit
$2,300.00 (Exc GST)
$2,645.00 (Inc GST)
FEATURES:
* This machine comes with a powerful 4hp single phase motor
* Equiped will Four knife cutterhead
* Serrated infeed rollers
* The machine is equiped with anti-kickback fingers for operator safety
* Large extension infeed and outfeed table are fitted allowing for maximum workpiece support
* Oil bath gearbox for feed speed change
* Fully enclosed carbinet stand
* Overhead rollers for passing workpiece over when re-machining
| Weight | 0.269 kg |
|---|---|
| Dimensions | 1.1 × 0.7 × 1.16 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
PLANER: TANNER 16″ 2.5HP 1PH MOTOR UNDER
SKU:
TKN112610
* This Tanner 16: Planer comes with a 2.5hp single phase motor
* Equiped wilh three knife 72.0mm cutterhead
* Serrated steel infeed rollers
* The machine is equiped with anti-kickback fingers for operator safety
* Large extension infeed and outfeed table are fitted allowing for maximum workpiece support
* Oil bath gearbox for feed speed change
* Fully enclosed carbinet stand
* Overhead rollers for passing workpiece over when re-machining
PLANER: TANNER 16″ tp-104H 4KW 3PH SPIRAL HEAD
SKU:
TKN112614
* This Tanner TP-104H 16" Planer comes with a 4.0kw motor
* Equiped wilh a spiral cutterhead
* Serrated steel infeed rollers
* The machine is equiped with anti-kickback fingers for operator safety
* Large extension infeed and outfeed table are fitted allowing for maximum workpiece support
* Oil bath gearbox for feed speed change
* Fully enclosed carbnet stand
* Heavy duty machine
PLANER: TANNER 16″ 2.2KW 1PH MOTOR UNDER
SKU:
TKN112618
* This Tanner TP-1040F 16" Planer comes with a 2.2kw motor
* Equiped wilh 3 blade cutter head
* Serrated steel infeed rollers
* The machine is equiped with anti-kickback fingers for operator safety
* Large extension infeed and outfeed table are fitted allowing for maximum workpiece support
* Fully enclosed carbnet stand
PLANER: TANNER CT-508 20″ 3HP 1 PHASE
SKU:
TKN114210
* The TANNER CT-508 20 Planer provides a cutting capacity of up to 20" wide
* Maximum planing thickness is 6.0mm
* With rollers situated on the top of the machine allows stock to pass over the machine
* Using the in-feed and out-feed roller support operation is easy and convenient
* An oil-bath lubricated gear box provides very smooth feeding
* Lifting lever is provided to allow for easy maneuverability
* The unit is the result of quality engineering which meets with CSA standards
* All components precision machined for complete interchangeability and added value
* A rugged machine which has been proven in the field for many years
PLANER: TANNER TP-106J 610MM 5.5KW 3PH SPIRAL CUTTER HEAD
SKU:
TKN114335
* TANNER WT-610 Planer with 610mm planing width
* Industrial quality machine
* Fitted with spiral cutter head
* 3pcs motor-driven upper feed rollers
* Rubber-coated outfeed rollers to endure a perfect feeding in any conditions
* Partial view of cutterblock and feed system
* Powerful 5.5hp main motor (10hp is optional)
* Cutterblock with antikick-back guards
PLANER: TANNER TP-206 600MM 2 SIDER SPIRAL HEADS
SKU:
TKN114354
* TANNER TP206 Planer with 760mm planing width
* Industrial quality machine
* Fitted with spiral cutter head
* 3pcs motor-driven upper feed rollers
* Rubber-coated outfeed rollers to endure a perfect feeding in any conditions
* Partial view of cutterblock and feed system
* Power rise & fall
* Cutterblock with antikick-back guards
PLANER: TANNER TP-304 600MM 3 SIDER SPIRAL HEADS
SKU:
TKN114358
* TANNER WT-760 Planer with 760mm planing width
* Industrial quality machine
* Fitted with spiral cutter head
* 3pcs motor-driven upper feed rollers
* Rubber-coated outfeed rollers to endure a perfect feeding in any conditions
* Partial view of cutterblock and feed system
* Powerful 20hp main motor
* Power rise & fall
* Cutterblock with antikick-back guards

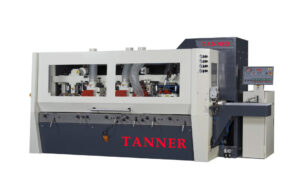

PLANER: TANNER FOUR SIDER 300MM 7.5HP
SKU:
TKN115020
* TANNER M-412 side Planer
* Industrial quality machine with table surface of high ductile cast iron
* Cutterhead guard is manufactured from HSS, heat treated
* Numerical control panel allows sizing adjustment of cutters for convenience and rapit settings
* Fitted with overload protection
* Feeding can be opperated in jog mode for accurate settings
Three phase motor drive.
Powerful motor drive for each spindle.
Digital position control for accurate and easy setting.
7,000 rpm high spindle speed.
Compact construction. Maximum stability.
Variable feed speed.
See-thru top guard.
