| CUTTING WIDTH | 508mm |
|---|---|
| CUTTING HEIGHT | 204mm |
| MIN LENGTH | 171mm |
| MIN THICKNESS | 3.0mm |
| FEED SPEEDS | 2 |
| FEED RATE | 5-10M/Min |
| CUTTER HEAD | 78.0mm |
| KNIVES | 4 @ 508 x 25 x3.0mm |
| SPEED | 5000rpm |
| MOTOR | 3hp 1Phase |
| WEIGHT NETT/GROSS | 410kg |
| VOLUME | 0.8052cm |
| PACKING SIZE L X W X H |
Sold out
Description
SKU : TKN114210
Price per Unit
$4,200.00 (Exc GST)
$4,830.00 (Inc GST)
FEATURES:

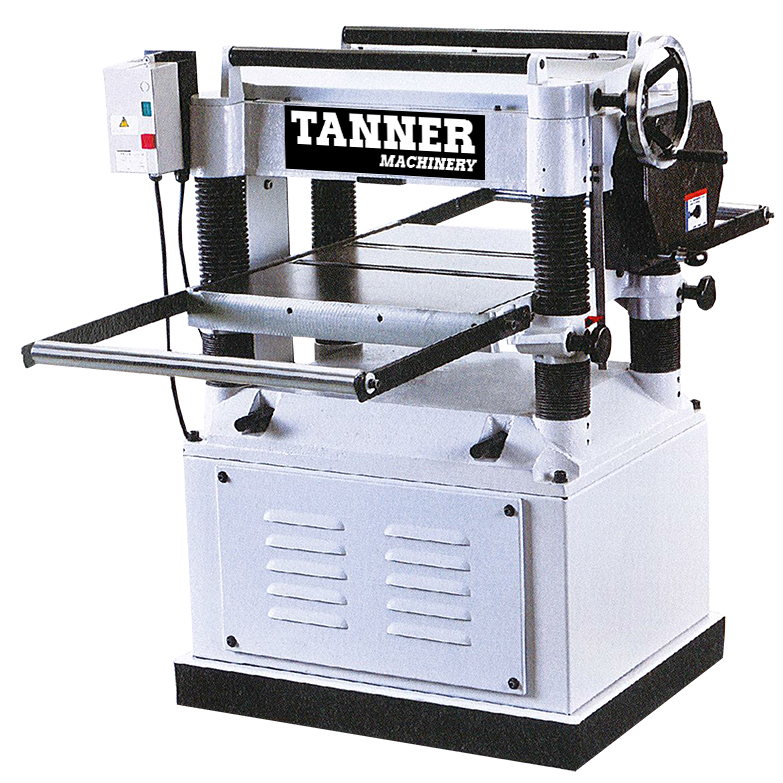

* The TANNER CT-508 20 Planer provides a cutting capacity of up to 20″ wide
* Maximum planing thickness is 6.0mm
* With rollers situated on the top of the machine allows stock to pass over the machine
* Using the in-feed and out-feed roller support operation is easy and convenient
* An oil-bath lubricated gear box provides very smooth feeding
* Lifting lever is provided to allow for easy maneuverability
* The unit is the result of quality engineering which meets with CSA standards
* All components precision machined for complete interchangeability and added value
* A rugged machine which has been proven in the field for many years
| Weight | 410 kg |
|---|---|
| Dimensions | 0.96 × 0.72 × 1.165 cm |
