| CUTTING WIDTH | 508mm |
|---|---|
| CUTTING HEIGHT | 200mm |
| MIN LENGTH | 170mm |
| MIN THICKNESS | 6.0mm |
| FEED SPEEDS | 2 |
| FEED RATE | 5-10M/Pm |
| CUTTER HEAD | 80.0mm |
| KNIVES | 4 @ 505 x 25 x 3.0mm |
| SPEED | 5000rpm |
| MOTOR | 5Hp 3 Phase |
| WEIGHT NETT/GROSS | 350/421KG |
| VOLUME | 0.8858cm |
| PACKING SIZE L X W X H |
Description
SKU : TKN114234
Price per Unit
$5,900.00 (Exc GST)
$6,785.00 (Inc GST)
FEATURES:

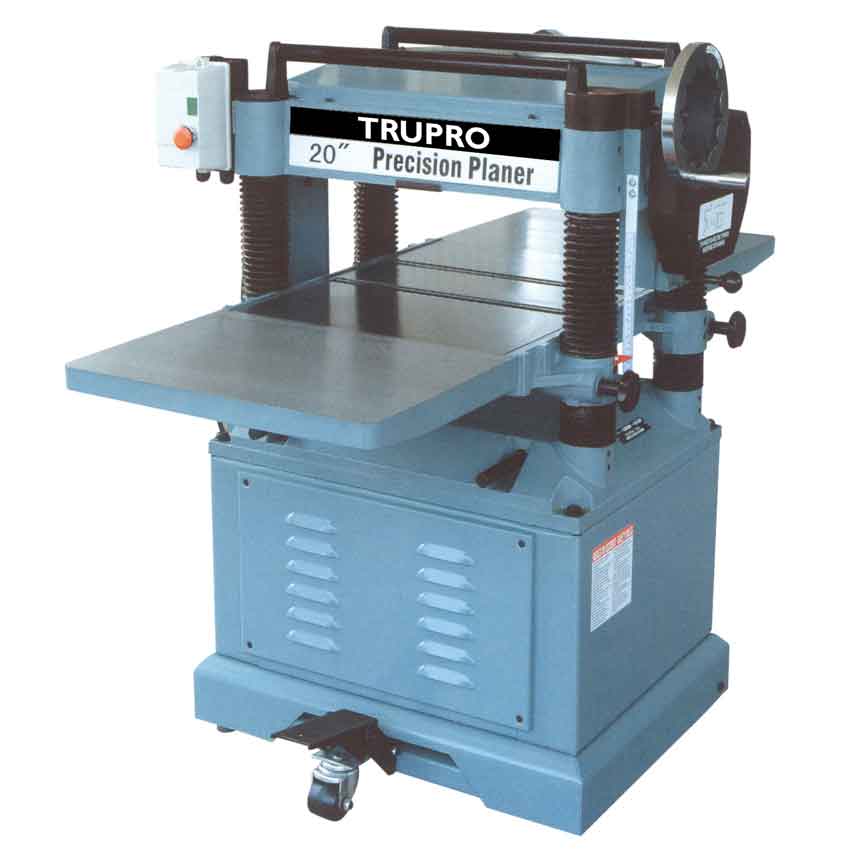

* The TANNER TPC-508 offers a cutting capacity up to 20 wide and a depth of 6.0mm
* Solid cast construction make this machine very rigid
* Four heavy columns suport the cutterhead
* Oil bath lubricating gearbox provides very smooth feeding
* Cutterhead is dynamically balanced to provide smooth running and a good finish
* Both infeed and outfeed tables are heavy cast to provide support to the workpiece
* Two rollers are built on top of the machine offering convenient material handling
* This model has a 5hp three phase motor
* A proven perfomer over many years of development
| Weight | 421 kg |
|---|---|
| Dimensions | 0.975 × 0.75 × 1.225 cm |
Specifications
