CUTTING WIDTH | 300mm |
---|---|
MAX CUTTING HEIGHT | 100mm |
MIN LENGTH | 230mm |
CUTTER SPINDLE DIAMETER | 30.0mm |
DIAMETER OF CUTTER HEADS | 72.0mm |
TABLE AREA | 1125 x 685mm |
FEED ROLLER DIAMETER | 100mm |
FEED SPEEDS | 11-52 ft/min. |
TABLE LENGTH | 1125mm |
CUTTERHEAD SPEED | 7000mm |
VERTICLE SPINDLE ADJUSTMENT | 30.0mm |
HORZ SPINDLE ADJUSTMENT | 30.0mm |
ELEVATION MOTOR | 1hp |
FEED MOTOR | 1hp |
ALL 3 SPINDLE MOTORS | 5hp |
FRONT UPPER SPINDLE | 7.5hp |
WEIGHT NETT/GROSS | 635/730kg |
VOLUME | 1.7391cm |
PACKING L X W X H | 1350 x 1140 x 1130 mm |
Availability : Enquire Now
Price per Unit
ex-gst
$56,000.00Inc-gst

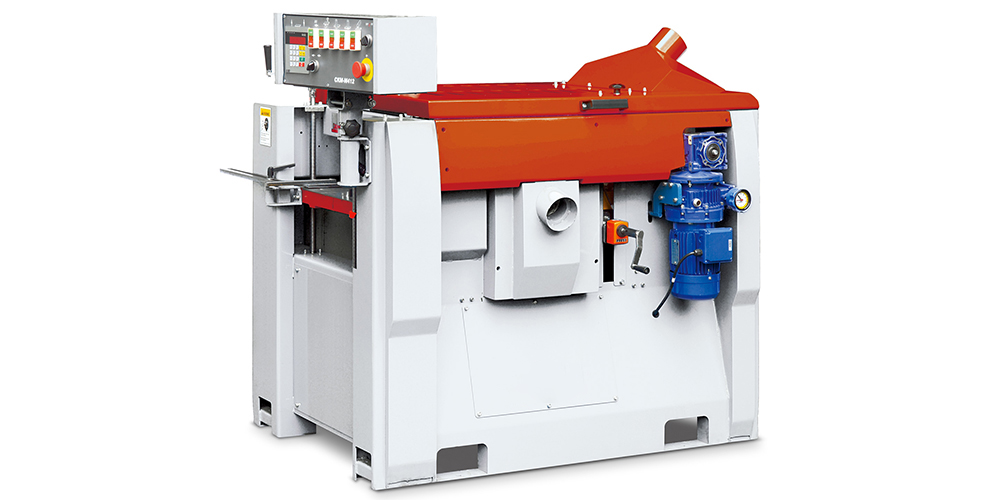

$64,400.00PLANER: TANNER FOUR SIDER 300MM 7.5HP
Description
SKU : TKN115020
Price per Unit
$56,000.00 (Exc GST)
$64,400.00 (Inc GST)
FEATURES:
* TANNER M-412 side Planer
* Industrial quality machine with table surface of high ductile cast iron
* Cutterhead guard is manufactured from HSS, heat treated
* Numerical control panel allows sizing adjustment of cutters for convenience and rapit settings
* Fitted with overload protection
* Feeding can be opperated in jog mode for accurate settings
Three phase motor drive.
Powerful motor drive for each spindle.
Digital position control for accurate and easy setting.
7,000 rpm high spindle speed.
Compact construction. Maximum stability.
Variable feed speed.
See-thru top guard.
Weight | 730 kg |
---|---|
Dimensions | 1.35 × 1.14 × 1.13 cm |
