| CUTTING WIDTH | 380mm |
|---|---|
| CUTTING HEIGHT | 200mm |
| MIN LENGTH | 300mm |
| MIN THICKNESS | 5.0mm |
| FEED SPEEDS | 2 |
| FEED RATE | 5-9 M/Min |
| CUTTER HEAD | 76.0mm |
| KNIVES | 3Pcs |
| BLADE SIZE | 384 X 25 X 3.0mm |
| SPEED | 5000rpm |
| MOTOR | 3Hp 1 Phase |
| WEIGHT NETT/GROSS | 270/300kg |
| VOLUME | 0.6962cm |

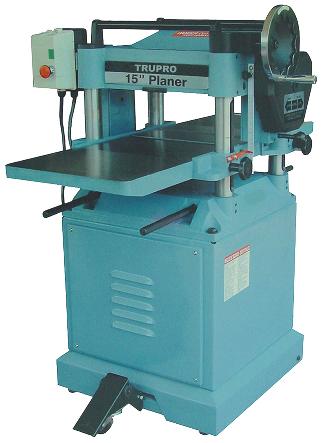

Description
SKU : TKN112124
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* This machine comes with a powerful 3hp single phase motor
* Equiped will three knife cutterhead
* Serrated infeed rollers
* The machine is equiped with anti-kickback fingers for operator safety
* Large extension infeed and outfeed table are fitted allowing for maximum workpiece support
* Oil bath gearbox for feed speed change
* Fully enclosed carbinet stand
* Overhead rollers for passing workpiece over when re-machining
| Weight | 300 kg |
|---|---|
| Dimensions | 0.79 × 0.75 × 1.175 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
PLANER: MB-104 16″ 4HP 1PH
SKU:
TKN112600
* This machine comes with a powerful 4hp single phase motor
* Equiped will Four knife cutterhead
* Serrated infeed rollers
* The machine is equiped with anti-kickback fingers for operator safety
* Large extension infeed and outfeed table are fitted allowing for maximum workpiece support
* Oil bath gearbox for feed speed change
* Fully enclosed carbinet stand
* Overhead rollers for passing workpiece over when re-machining
PLANER: TANNER 16″ 2.5HP 1PH MOTOR UNDER
SKU:
TKN112610
* This Tanner 16: Planer comes with a 2.5hp single phase motor
* Equiped wilh three knife 72.0mm cutterhead
* Serrated steel infeed rollers
* The machine is equiped with anti-kickback fingers for operator safety
* Large extension infeed and outfeed table are fitted allowing for maximum workpiece support
* Oil bath gearbox for feed speed change
* Fully enclosed carbinet stand
* Overhead rollers for passing workpiece over when re-machining

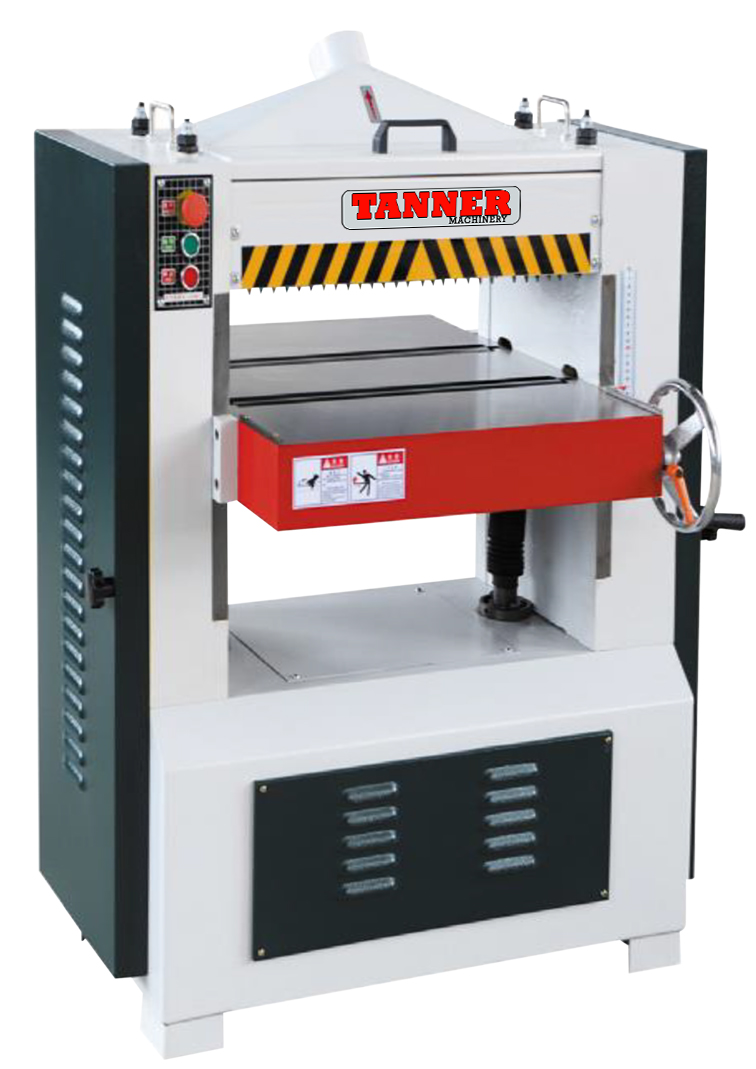

PLANER: TANNER 16″ tp-104H 4KW 3PH SPIRAL HEAD
