| MODEL | PBCNC 160 x 3100 |
|---|---|
| PRESSING FORCE | 160 Tonnes |
| BENDING LENGTH | 3100 mm |
| STROKE | 150 mm |
| MAX DAY LIGHT | 415 mm |
| TABLE HEIGHT | |
| DISTANCE BETWEEN | 2650 mm |
| THROAT DEPTH | 320 mm |
| APPROACH SPEED | 90 mm/Sec |
| PRESSING SPEED | 09 mm/Sec |
| RETURN SPEED | 90 mm/Sec |
| MOTOR POWER | 10 Kw |
| CONTROLLER TYPE | DELEM DA66T |
| LIGHT GUARD TYPE | AKAS LASER SAFE |
| WEIGHT NETT/GROSS | 10200Kg |
| VOLUME | 20,665cm |
Description
SKU : PBK100295
Price per Unit
$110,000.00 (Exc GST)
$126,500.00 (Inc GST)
FEATURES:
* Strong welded steel structure Stress relieved to improve stability
* Torsion shaft forced synchronisation of mechanical limit stopper balance
* Intergrated hydraulic system can accomodate large range of speed regulation
* Delem Touch screen Controller DA66T.
* Akas (Germany) CE Laser guard
* Front support moveable on guide rails
* Quick clamping top tool. Bottom tool on guide rails
* Segmented top and bottom tool.
| Weight | 10200 kg |
|---|---|
| Dimensions | 4.5 × 1.7 × 2.7 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
PRESS BRAKE: 2 AXIS ADH WC67E -30T X 1600MM ESTUN 200P
SKU:
PBK100072
* Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder. * Electronically controlled by Estun E200 programmable digital controlller assuring accuraterepeatability.
* Hardened ball screw on back gauge with manual crowning arrangement.
* Front support can be easily adjusted and moved depending on the sheet width.
* Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
* Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
* Conveniently mounted control box on pendant for quick swivel and adjustments.
* Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
PRESS BRAKE: 2 AXIS ADH WC67E -63T X 2500MM ESTUN 200P
SKU:
PBK100080
* Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder.
* Electronically controlled by Estun E200 programmable digital controlller assuring accuraterepeatability.
* Hardened ball screw on back gauge with manual crowning arrangement.
* Front support can be easily adjusted and moved depending on the sheet width.
* Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
* Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
* Conveniently mounted control box on pendant for quick swivel and adjustments.
* Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
PRESS BRAKE: 2 AXIS WC67E -135T X 2500MM ESTUN E200P
SKU:
PBK100095
* Hydraulic / Mechanical ram, synchronised positive stop design
* Ram stroke controlled by precision mechanical nut depth stops built into each cylinder
* Electronically controlled by Estun E200 programmable digital controlller assuring accuraterepeatability
* Hardened ball screw on back gauge with manual crowning arrangement
* Front support can be easily adjusted and moved depending on the sheet width
* Hydraulic MPA pressure gauge mounted on right side of support frame
* With quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness
* Incorporating with hydraulic overload protection
* Enclosed rear gate with micro safety switches complete with sliding rear door for easy access
* Conveniently mounted control box on pendant for quick swivel and adjustments
* Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
PRESS BRAKE: 2 AXIS WC67E-160T X 3200MM ESTUN E200P
SKU:
PBK100100
* Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder.
* Electronically controlled by Estun E200 programmable digital controlller assuring accuraterepeatability.
* Hardened ball screw on back gauge with manual crowning arrangement.
* Front support can be easily adjusted and moved depending on the sheet width.
* Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
* Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
* Conveniently mounted control box on pendant for quick swivel and adjustments.
* Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.

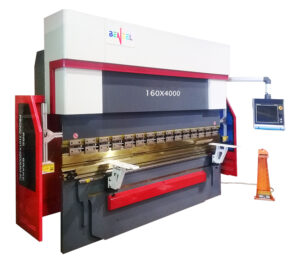

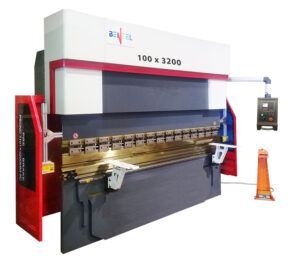

PRESS BRAKE: BENZEL PBCNC 63T X 2600MM-4C DELEM DA58T
SKU:
PBK100285
PRESS BRAKE: BENZEL PBCNC 150T X 4100MM-5C DELEM DA66T
SKU:
PBK100293
* Strong welded steel structure Stress relieved to improve stability
* Torsion shaft forced synchronisation of mechanical limit stopper balance
* Intergrated hydraulic system can accomodate large range of speed regulation
* Delem Touch screen Controller DA66T.
* Akas (Germany) CE Laser guard
* Front support moveable on guide rails
* Quick clamping top tool. Bottom tool on guide rails
* Segmented top and bottom tool *
PRESS BRAKE: BENZEL PBCNC 250T X 4200MM- 3C DELEM DA58T
SKU:
PBK100315

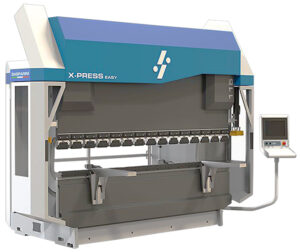

PRESS BRAKE: GASPARINI EASY PRESS 115T x 3000MM
