MODEL | IW-100S |
---|---|
PUNCHING FORCE | 100Ton |
PUNCHING CAPACITY | 28Dia X 26mm/50Dia X 15.0mm |
THROAT DEPTH | 310mm |
MAX STROKE | 100mm |
FLAT SHEARING | 610 X 16mm/400 X 20.0mm |
BLADE LENGTH | 620mm |
ANGLE SHEARING | 152 X 152 X 15.0mm |
MITRE SHEARING | 80 X 80 X 10.0mm |
ROUND BAR SHEAR | 45.0mm |
SQUARE BAR SHEAR | 45 X 45mm |
CHANNEL SHEAR | 152mm |
HBEAM SHEAR | 152mm |
WORKING HEIGHT | 1340mm |
MOTOR | 10Hp |
WEIGHT NETT/GROSS | 2950kg/ 3180 |
VOLUME | 4.1 |
OIL TANK CAPACITY | 180Ltrs Hydraulic Oil 46 |
PACKING L X W X H |
Availability : Enquire Now
Price per Unit
ex-gst
$25,000.00Inc-gst

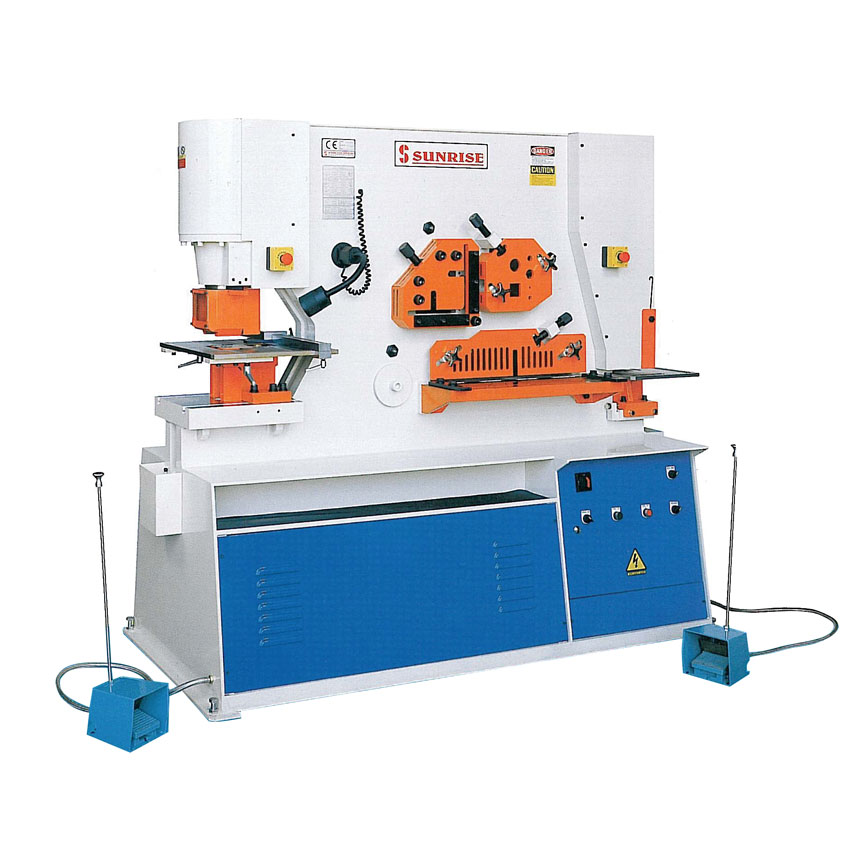

$28,750.00PUNCH & SHEAR: IW-100SH 100TON SUNRISE-HYD CLAMP
SKU : PNS160669
Price per Unit
$25,000.00 (Exc GST)
$28,750.00 (Inc GST)
FEATURES:
* The double cylinder “S” series are in the Sunrise tradition of well engineered ironworkers built for high power, quality, and reliability.
* Standard with two foot control pedals, meaning separate operations can be safely performed simultaneously.
* Factory fittrd with hydraulic plate clamping facility, and auto touch & cut systems.
* The low pressure setting for tool change provides maximum operation safety.
* The long punching cylinder stroke and deep throat enable mounting of a wide range of special equipment.
* The large punching base with the “T-slot” fixing provides a solid base for securing the punching tooling, along with a wide range of optional and custom designed tooling.
Weight | 3180 kg |
---|
