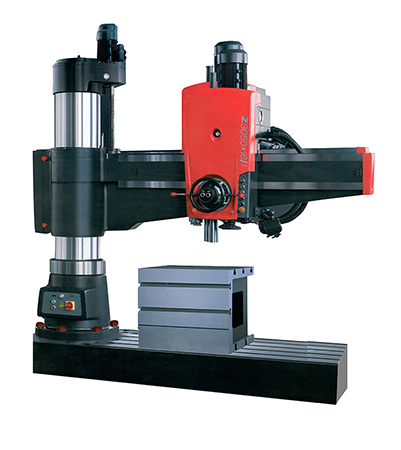

| MODEL | Z3050X16/1 |
|---|---|
| DRILL CAPACITY TAPPING | 50mm 30mm |
| SPINDLE QUILL TRAVEL | 315mm |
| SPINDLE TAPER | MT 5 |
| SPINDLE SPEEDS & RANGE | 25 ~ 2000rpm |
| COLUMN DIAMETER | 350mm |
| ARM DISTANCE | 1600mm |
| SPINDLE CENTRE TO COLUNM | Min = 350mm Max =1600mm |
| SPINDLE NOSE TO BASE | Min = 320mm Max =1220mm |
| ARM LIFT MOTOR | 1.1 Kw |
| MAIN MOTOR | 4 Kw |
| WEIGHT NETT/GROSS | 3500/4000 Kg |
| VOLUME | 7.95 |
| SIZE | 2500 x 1070 x 2840mm |
Description
SKU : RD-355395
Price per Unit
$18,000.00 (Exc GST)
$20,700.00 (Inc GST)
FEATURES:
* The Radial Drilling machines are widely used for Drilling, Tapping, Counterboring, Reaming, Boring and others.
* The Z-Series Radial Drill has been developed and manufactured for over 58 years in one of the largest production facilities in the world
* It has a unique Hydraulic variable frequency motor that allows a stepless regulation of the spindle speeds including Forward/Reverse & Stop using one control lever.
| Weight | 4300 kg |
|---|
