DESCRIPTION | Rebar Bender |
---|---|
MODEL | SWB42 |
BENDING CAPACITY | 6.0-42.0mm |
OPERATION | Manual |
MOTOR POWER | 3HP 1 Phase |
TYPE OF MOTOR | Brake Motor |
MOTOR ROTATION SPEED | 1430 rpm |
SPEED OF WORKING DISC | 12 rpm |
WEIGHT NETT/GROSS | 365/ 405kg |
VOLUME | 0.6996cm |
PACKING | L 800mm X W 870 X H 1,000 |
Availability : Enquire Now
Price per Unit
ex-gst
$4,850.00Inc-gst

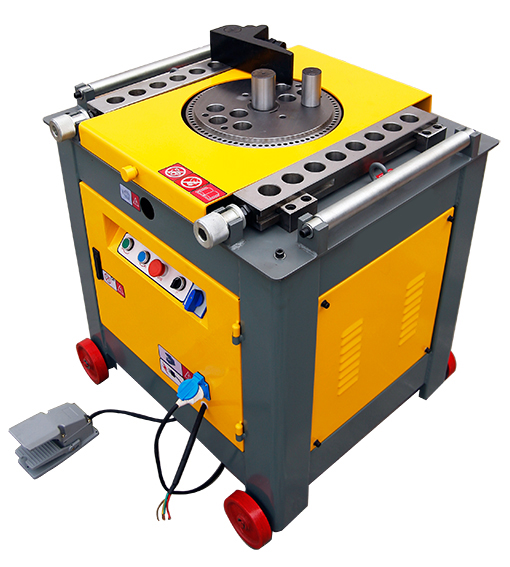

$5,577.50RE-BAR BENDER: SWB42 230V 1 PHASE HAWK
Description
SKU : BBR131350
Price per Unit
$4,850.00 (Exc GST)
$5,577.50 (Inc GST)
FEATURES:
* This SWB42 adops the fully enclosed gearbox seperated from the working disc
* This prevents distorsion even under heavy loads
* Fitted with dust proof brake motor
* Two limit switches ensure the accuracy of bends even after stopping and starting
* Powerful 3hp single phase motor
* All gears, gear shafts, working disc, stop guage, sadles, pile heads and pile head bushings are made of forged high quality alloy steel with proper heat treatment ( 2.0mm thick external case to ensure high performance under heavy loads for a long working life
Weight | 365 kg |
---|---|
Dimensions | 0.8 × 0.87 × 1 cm |
Specifications
Description
Reviews (0)
