| DESCRIPTION | Rotary CeossTable 100mm |
|---|---|
| TYPE | Rotary Table-Indexer |
| TABLE SIZE | 225 x 175mm |
| TRAVEL X | 105mm |
| TRAVEL Y | 90mm |
| ROTATION | 360 Deg |
| T-SLOT SIZE | 10.0mm |
| WEIGHT NETT/GROSS | 17.34/18.0kg |
| VOLUME | 0.0207cm |
| PACKING SIZE L X W X H | 300 x 300 x 230mm |
POWER ROTARY TABLE: 10" LIBO
$2,875.00
Description
SKU : RT-9580200
Price per Unit
$595.00 (Exc GST)
$684.25 (Inc GST)
FEATURES:
* Table is made from high density Meehanite casting with ground finish
* Tested by Heidenhain electronic testing equipment to ensure the utmost quality
* Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions
* Worm is hardened and ground and has a ratio of 90:1
* The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø
* Micro collar is graduated in steps of 1’min and vernier scale makes settings down to 10 seconds possible
* These rotary tables are popular for their excellent performance practical design and affordable cost
* Widely used for circular cutting work angle setting boring
| Weight | 18 kg |
|---|---|
| Dimensions | 0.3 × 0.3 × 0.23 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products

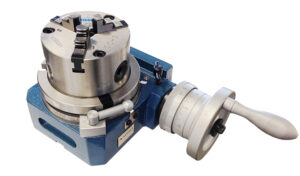

ROTARY TABLE: HV-4 4″ VERTEX TABLE W/CHUCK
