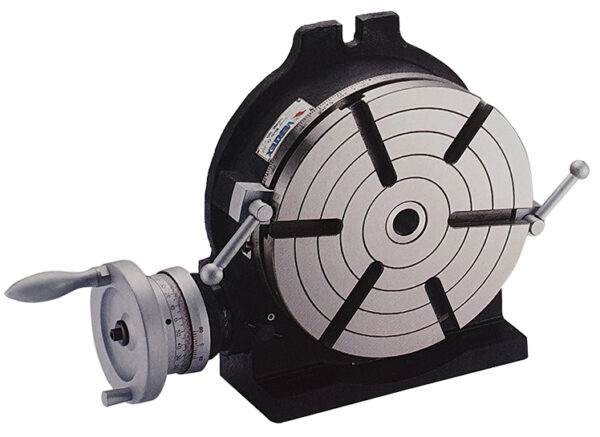

| DESCRIPTION | Rotary Table HV-10 10″ |
|---|---|
| TYPE | Rotary Table |
| HEIGHT HORIZONTAL | 115mm |
| HEIGHT VERTICAL | 325mm |
| T-SLOT WIDTH | 14.0mm |
| NUMBER OF SLOTS | 6 |
| WEIGHT NETT/GROSS | 38/ 40kg |
| VOLUME | 0.0289 |
| PACKING SIZE L X W X H | 380 x 380 x 200mm |
Description
SKU : RT-9580010
Price per Unit
$995.00 (Exc GST)
$1,144.25 (Inc GST)
FEATURES:
* Table is made from high density Meehanite casting with ground finish
* Tested by Heidenhain electronic testing equipment to ensure the utmost quality
* Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions
* Worm is hardened and ground and has a ratio of 90:1
* The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø
* Micro collar is graduated in steps of 1′ min and vernier scale makes settings down to 10 seconds possible
* These rotary tables are popular for their excellent performance practical design and affordable cost
* Widely used for circular cutting work angle setting boring
| Weight | 40 kg |
|---|---|
| Dimensions | 0.38 × 0.38 × 0.2 cm |
