DESCRIPTION | Rotary Table 3″ |
---|---|
TYPE | Horz/Vert Rotary Table |
HEIGHT HORIZONTAL | |
HEIGHT VERTICAL | |
T-SLOT SIZE | |
WEIGHT NETT/GROSS | 3.200kg |
VOLUME | 0.0060cm |
PACKING SIZE L X W X H | 200 x 200 x 150mm |
Availability : Enquire Now
Price per Unit
ex-gst
$495.00Inc-gst

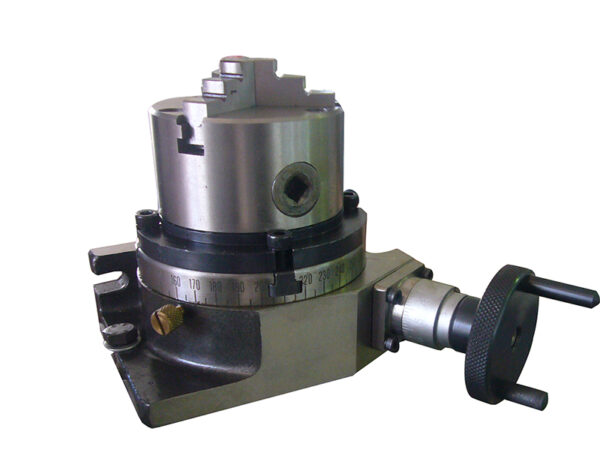

$569.25ROTARY TABLE: HV-3 3" ALTO W/CHUCK
Description
SKU : RT-9580001A
Price per Unit
$495.00 (Exc GST)
$569.25 (Inc GST)
FEATURES:
* This 3 horizontal/verticle rotary table comes complete with 3 3 jaw chuck *
Weight | 3.2 kg |
---|---|
Dimensions | 0.2 × 0.2 × 0.15 cm |
Specifications
Description
