DESCRIPTION | Rotary Table HV-4 4″ |
---|---|
TYPE | 100mm Chuck |
HEIGHT HORIZONTAL | Yes |
HEIGHT VERTICAL | 138mm |
T-SLOT SIZE | 11mm |
WEIGHT NETT/GROSS | 8.945kg |
VOLUME | 0.0132cm |
CHUCK PACKING SEPERATE | 130 X 120 X 100mm |
WEIGHT | 8.945 |
PACKING SIZE L X W X H | 330 x 200 x 200mm |
Description
SKU : RT-9580003
Price per Unit
$385.00 (Exc GST)
$442.75 (Inc GST)
FEATURES:

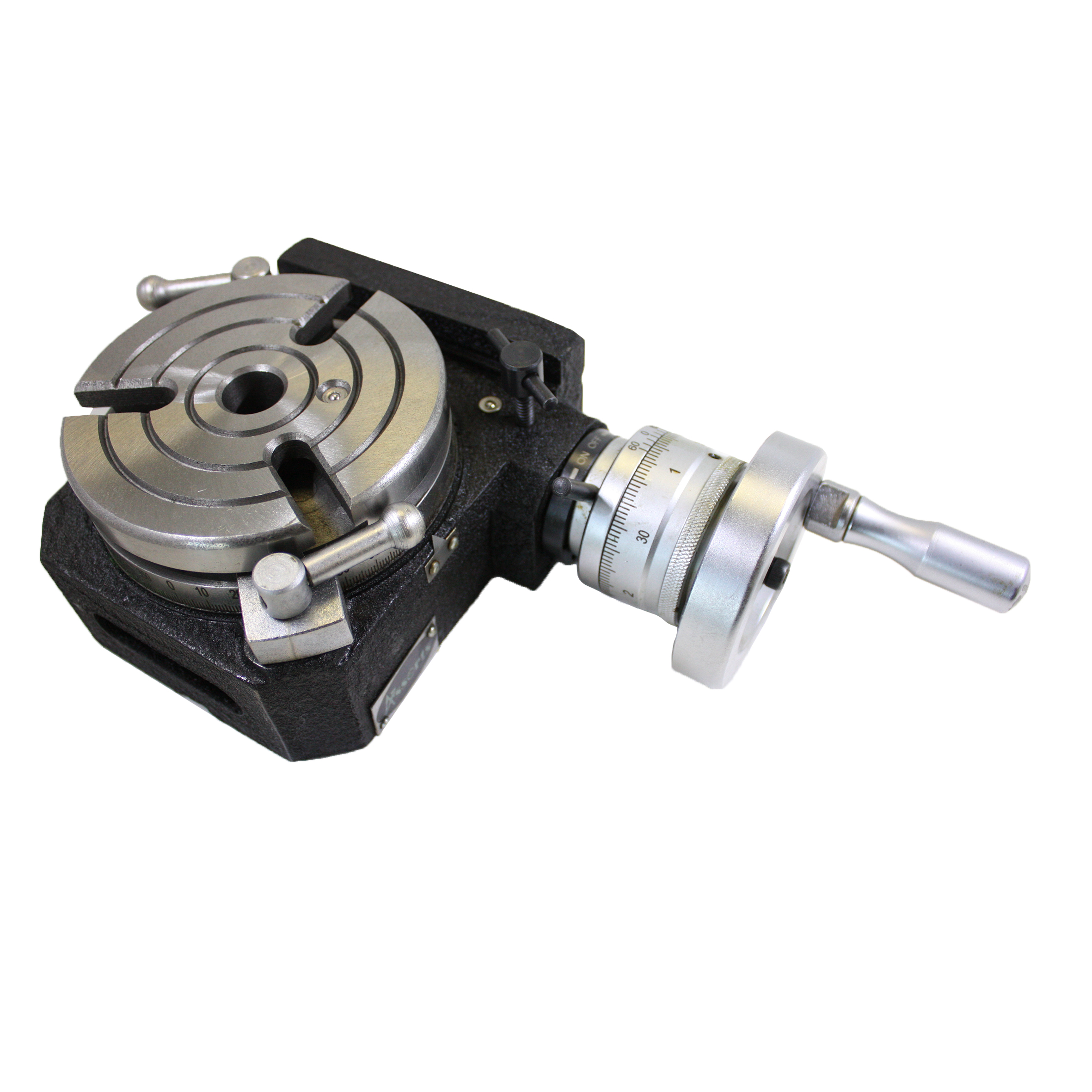

* This 4″ rotary table is a very versitile unit
* Table diameter is 100mm
* Worm gear ratio 1:36 = 1 rotation will increase by 10 degrees
* Graduated indexing dial to 360 derees
* Centre height in verticle = 66.0mm approx
Hand wheel is graduated in 10 min divisions and can be set at zero
* Comes with 3 tee slots in table
* This rotary table comes with 100mm 3 jaw chuck in seperate package
* Chuck is on backing plate and can be removed
Weight | 8.945 kg |
---|---|
Dimensions | 0.33 × 0.2 × 0.2 cm |
