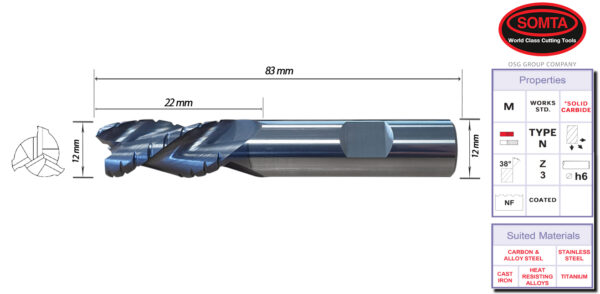

DESCRIPTION | Roughing End Mill |
---|---|
DIAMETER | 12.0mm |
MATERIAL | Carbide |
FLUTES | 3 Flute |
LENGTH O/A | 83.0mm |
FLUTE LENGTH | 22.0mm |
SHANK DIAMETER | 12.0mm |
SHANK TYPE | Flatted Shank |
FINISH | Coated |
WEIGHT NETT/GROSS | 0.075kg |
VOLUME | 0.0001cm |
TO SUIT | * Fast cutting stainless * Hard Steel * Tool steel and other hard materials |
SKU : EM-7486212
Price per Unit
$88.99 (Exc GST)
$102.34 (Inc GST)
FEATURES:
* Roughing Cutters in the round tool sector are better known as “RMR” cutters (Rapid Metal Removal)
*They (more commonly) will incoporate a typical spiral helix shape of multiple flutes which is a helix of between 20 and 40degrees
* The cutting edge is broken into many segments that look like serations or multiple small radii
* Tradesmen are of the opnion that the best RMR designs are ones that incorporate rounder profile serations
* This is for obvious reasons that mainly lead to increased cutting edge strength
* Having a broken edge has some benefts but also some draw backs
* Ultimately, all you really get is the ability “To produce smaller chips per cm3/min (i3/min) of material machined”
* By getting lots of smaller chips, you are able to get much better smarf removal/control and therefore, in some cases, are able to run a higher D.O.C (depth of cut) and/or f/z (feed per
* The main reasons for RMR cutters being in existence is lower cutting forces, higher tool life and less bending when milling a shoulder at a high depth of cut
* A broken edge greatly lowers the forces generated on the cutting edge. This can be a reduction of as much as 50% and an increase in tool life of as much as 50% can also be seen *
Weight | 0.075 kg |
---|---|
Dimensions | 0.1 × 0.03 × 0.03 cm |
