MODEL | APK-100 |
---|---|
TYPE | Sectional Rolls |
ROLL DIAMETER | 315mm |
SHAFT DIAMETER | 100mm |
BENDING SPEED | 5.4m/min |
CAPACITY ROUND SOLID | 70.0mm ( 800mm Min Dia) 40.0mm ( 400mm Min dia) |
CAPACITY PIPE | 114.3 x 4.5mm ( 1600mm Min Dia) 140 x 3.0mm ( 3000mm Min Dia) |
CAPACITY SQUARE SOLID | 60.0mm ( 1000mm Min Dia) 30.0mm ( 400mm Min Dia) |
CAPACITY RECT SOLID | 120 x 25.0mm ( 1600mm Min Dia) 40 x 10.0mm ( 400mm Min Dia) |
CAPACITY ANGLE IRON | 100 x 100 x 10.0mm (1600mm Min Dia) 50x50x6mm ( 800mm Min Dia) |
CAPACITY SQUUARE BOX | 100 x 100 x 5mm (3000mm Min Dia) 50 x 50 x 2.5mm ( 500mm Min Dia |
MOTOR | 11 kw |
WEIGHT NETT/GROSS | 2240 Kg |
VOLUME | 2,9412cm |
L X W x H | 1435 x 1220 x 1680mm |
Availability : Enquire Now
Price per Unit
ex-gst
$0.00Inc-gst
$0.00SECTIONAL ROLL MACH: AKYAPAK APK-101
Description
SKU : SRM131800
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:

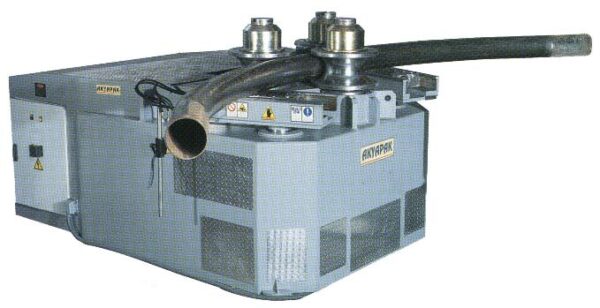

* The Akyapak APK-100 is one of the larger profile bending machines manufactured by this company
* Equipped with the CNC Graphic Control System which allows for the input of: length width alasticity module, yeild point of material and bending diameter * 8 Cylindrical shells as well as cone, circular, ellipse, oval, triangle, rectangular and many bending types can be achieved
* Operation of the program is easy and faster than other systems as the control unit makes mathematical calculations itself and does not rely on operator experience material data is all you need to operate this machine.
Weight | 2240 kg |
---|
