SECTIONAL ROLL MACH: RBM10 MANUAL
SECTIONAL ROLL MACH: RBM10 MANUAL $2,400.00
Back to products
Placeholder
OPTIONAL NYLON ROLLS FOR HRMB65: 38.1mm od Wheels(3pcs) $850.00
Click to enlarge

Availability : Enquire Now

Price per Unit

ex-gst

$3,300.00

Inc-gst

$3,795.00
Print
Description

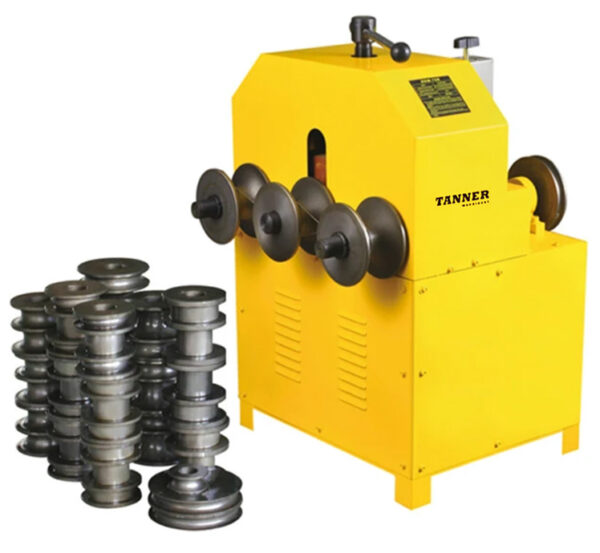

SKU : SRM131652

Price per Unit

$3,300.00 (Exc GST)

$3,795.00 (Inc GST)

FEATURES:

* The G76 Tube Bender will form round and square tubing
* Specially designed machine which allows operations to be performed on either side of the machine for bending round or square tubing
* Formers are manufactured from grey cast iron for long tool life
* Compact machine offering good quality forming
* Fitted with 230V 1.5kw motor


Weight 260 kg
Dimensions 0.73 × 0.63 × 1.03 cm
Compare
Add to wishlist
Specifications
Description
MODEL G-76B
TYPE Section Tube Roller
ROLL DIAMETER Interchangable
SHAFT DIAMETER 30.0mm
MOTOR SPEED 1400/Min
CAPACITY ROUND TUBE 16 – 76.0mm
CAPACITY SQUARE SECTION 16 – 50.0mm
ROLLERS FOR ROUND TUBING 16,19,22,25,32,38,51,63,76mm
ROLLERS FOR SQUARE TUBING 16,19,22,25,30,38,40,50mm
WALL THICKNESS STAINLESS RD: 0.5 – 1.5mm / SQ: 0.5 – 1.5mm
WALL THICKNESS MILD STEEL RD: 0.8 – 2.0mm / SQ: 0.8 – 1.8mm
MOTOR 1.5 Kw 230V 1 Phase
WEIGHT NETT/GROSS 242/ 260kg
VOLUME 0.4737cm
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “SECTIONAL ROLL MACH: G76B 16-76 ROUND & SQUARE TUBE”

Your email address will not be published. Required fields are marked *

Shipping & Delivery

Related products

Compare

SECTIONAL ROLLING RMB 30HV SINGLE PHASE

SKU: SRM131654
$4,300.00
* This is a specially designed section and rolling machine can be used on either side front or rear of machine * Comes complete with stand * Bends Flat, square & rectangular sections into circular or radius curves ** Includes: 3 Standard Rolls for flat, angle, I Section and U section.
Add to wishlist
Add to cart
Quick view
Compare

SECTIONAL ROLL MACH: AKYAPAK APK 30 THREE PHASE

SKU: SRM131660
$5,775.00
* 2 Rolls are motor driven. * Machine suitable for doing different profiles such as Round Square Rectangular Angle iron Chennel and T-section. * Can be used in vertical and horizontal position. * Heavy duty metal fabricated stand. * Electrical system to CE standard.
Add to wishlist
Add to cart
Quick view
Compare

SECTIONAL ROLL MACH: AKYAPAK APK 35 THREE PHASE

SKU: SRM131665
$6,105.00
* 2 Rolls are motor driven. * Machine suitable for doing different profiles such as Round Square Rectangular Angle iron Chennel and T-section. * Can be used in vertical and horizontal position. * Havy duty metal fabricated stand. * Electrical system to CE standard.
Add to wishlist
Add to cart
Quick view
Compare

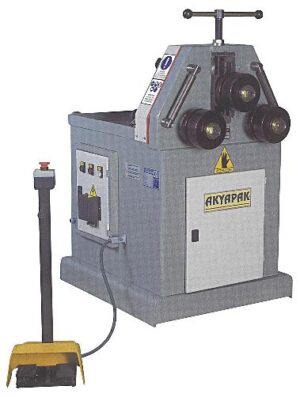

SECTIONAL ROLL MACH: AKYAPAK APK45 + DUAL SPEED

SKU: SRM131670
$15,990.00
* Cast Body 2 Rolls are motor driven. * Machine suitable for doing different profiles/sections. * Can be used in vertical and horizontal position. * Electrical system to CE standard.
Add to wishlist
Add to cart
Quick view
Compare

SECTIONAL ROLL MACH: AKYAPAK APK 81

SKU: SRM131720
$29,500.00
* The machine is fabricated of steel construction * Rollers are driven by electric motors + reducer * Shafts are made of special steel hardened and ground * Electrical system to CE standard.
Add to wishlist
Add to cart
Quick view
Placeholder
Compare

OPTIONAL NYLON ROLLS FOR HRMB65: 38.1mm od Wheels(3pcs)

SKU: SRM200147
$850.00
DESCRIPTION Nylon Rollers TO SUIT HRMB65 QUANTITY 3pc Set SIZE 38.1 mm WEIGHT NETT/GROSS VOLUME
Add to wishlist
Add to cart
Quick view
Compare

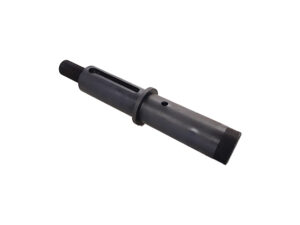

RBM 50HV: SPACERS MAIN SHAFT 50.0MM BORE
