| MODEL | RMB 30HV |
|---|---|
| TYPE | Horz / Vertical |
| ROLL DIAMETER | 120mm |
| SHAFT DIAMETER | 30 mm |
| BENDING SPEED | 9R/Min |
| CAPACITY ROUND SOLID | 30.0mm Dia Min Dia 600mm |
| CAPACITY PIPE | 60 x 2.0mm Dia Min Dia 1000mm |
| CAPACITY SQUARE | 50.0mm |
| CAPACITY RECT SOLID | 50 x 15.0mm Min Dia 350 |
| CAPACITY ANGLE IRON | 40 X 40 x 4.0mm Min Dia 400mm |
| CAPACITY SQUARE BOX | 40 x 40 x 3.0mm Min Dia 1000mm |
| MOTOR | 0.75 Kw |
| WEIGHT NETT/GROSS | 224/282 kg |
| VOLUME | 1.044cm |
| PACKING SIZE L X W X H | 1160 x 750 x 1044mm |
Description
SKU : SRM131654
Price per Unit
$4,300.00 (Exc GST)
$4,945.00 (Inc GST)
FEATURES:

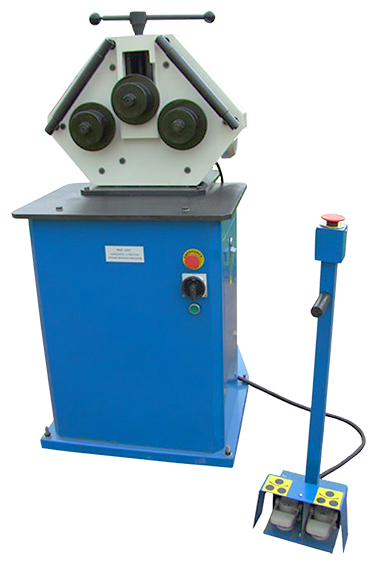

* This is a specially designed section and rolling machine can be used on either side front or rear of machine
* Comes complete with stand
* Bends Flat, square & rectangular sections into circular or radius curves
** Includes: 3 Standard Rolls for flat, angle, I Section and U section.
| Weight | 224 kg |
|---|---|
| Dimensions | 1.16 × 0.75 × 1.2 cm |
