ROLLER | 20120930 |
---|---|
MAX WIDTH | 760mm |
MAX SHEARING | 0.6mm |
MAX BENDING | 1.0mm |
BENDING DEG | 90 Deg |
MIN ROLLING DIA | 39.0mm |
WEIGHT NETT/GROSS | 210/ 230kg |
VOLUME | 0.6026cm |
PACKING SIZE L X W X H | 1320 x 550 x 830mm |
Description
SKU : SFR131200
Price per Unit
$1,200.00 (Exc GST)
$1,380.00 (Inc GST)
FEATURES:

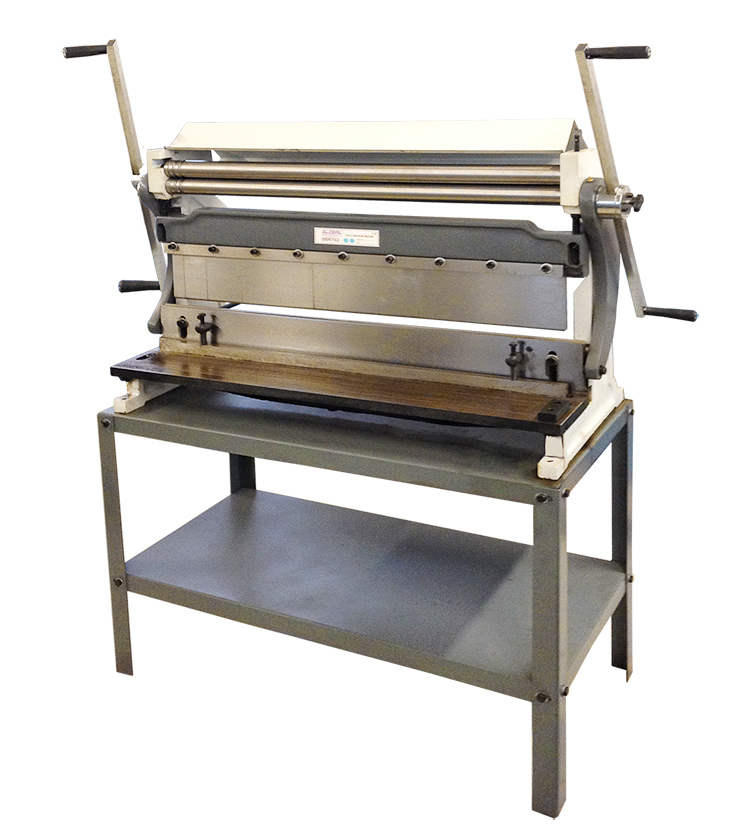

* This unique machine offers three features in the one machine
* On top is a set of rolls
* In the centre is a bender with removable fingers which work on the same principle as a small press break
* On the lower level of the machine is the shear which has a cast table and a clamping bar to hold workpiece
* The machine is heavy cast construction and can be bench mounted or on a stand
* Ideal machine for small workshops where space is a problem
Weight | 230 kg |
---|---|
Dimensions | 1.32 × 0.55 × 0.83 cm |
Specifications
