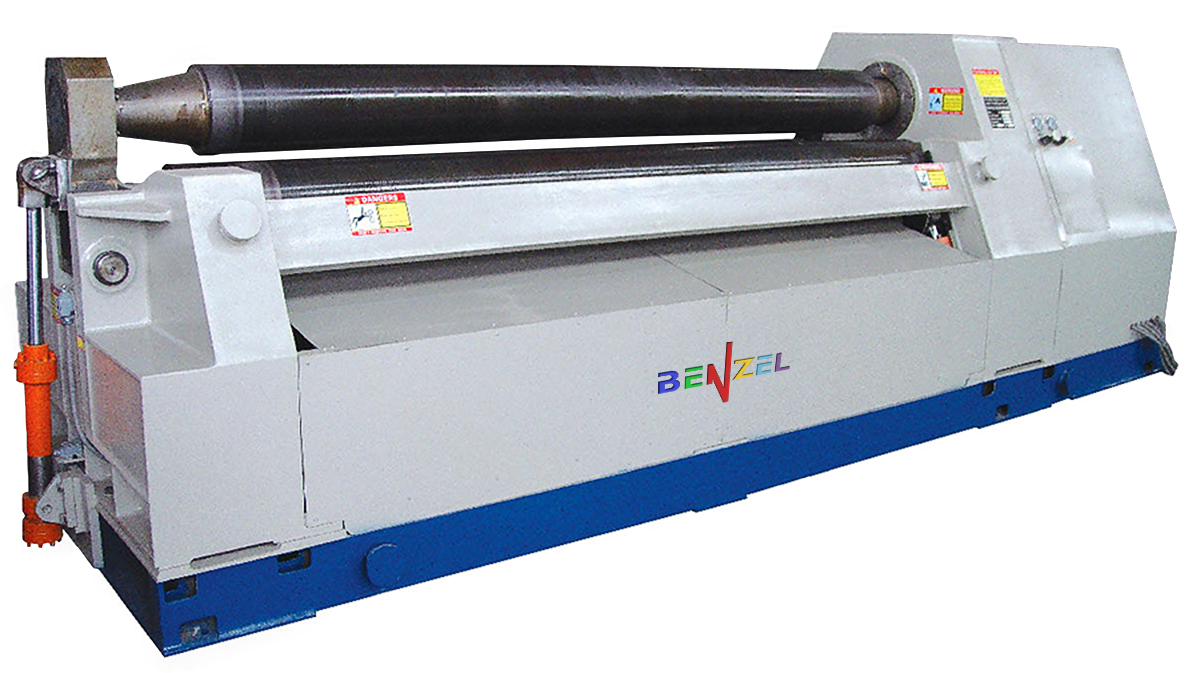

| DESCRIPTION | Slip Rolls Width 2500mm |
|---|---|
| CAPICITY MILD STEEL | 12.0mm |
| DIAMETER OF ROLLS | 255mm |
| Curving System Type | Pyramid |
| Minimum Rolling Diamete | 600mm |
| MOTOR | 7/5 kw |
| WEIGHT NETT/GROSS | 5200 Kg |
| Dimensions (LxWxH) | 4300 x 1300 x 1600 |
| VOLUME | 89440cm |
Description
SKU : ROL132000
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* Two rolls powered by gearbox and gear system
* Swing out end enables complete cylinder to be removed
* Heavy duty steel welded main frames
* Mobile control panel with foot pedals
* Precision ground rolls with wiring grooves
* Safety wire interlock system with emergency shut-off
* Motorised up & down top roll for curving adjustment
* Includes Section roll system with flat bar and pipe dies
* Mild steel capacity is rated on hot rolled material with 250MPA
| Weight | 5800 kg |
|---|---|
| Dimensions | 2.7 × 1.4 × 1.4 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
AKYAPAK: HYDRAULIC ROLLS 3100 X 40.0MM
SKU:
ROL131260
* 4 Roller Plate bending machine
* Precise pinching of plate between top and bottom rolls.
* Legth of flat ends minimised.
* Cone rolling device
* Induction hardened rolls
* Fully welded steel (St -52 frame)
* Dual bending speed
* Hydraulic open and close operated from control panel
* Top and Bottom (central rolls) driven by hydraulic motor and planetary gear reducer
AKYAPAK: SLIP ROLLS 1250 X 3.0MM
SKU:
ROL131271
AKYAPAK: SLIP ROLLS ASM 2050 X 4MM
SKU:
ROL131273
* Body is made of cast-iron construction.
* Rolling driven by electric motor + reducer
* Upper roll is openable by side.
* Lower and back rolls are adjutable up and down with hand wheel.
* Self brake main motor
* Cone rolling device
* Seaparate moveable control panel and foot pedal
* Suitable for CE standard.
AKYAPAK: SLIP ROLLS ASM 1300 X 6.5MM
SKU:
ROL131277
* Body is made of cast-iron construction.
* Rolling driven by electric motor + reducer
* Upper roll is openable by side.
* Lower and back rolls are adjutable up and down with hand wheel.
* Self brake main motor
* Cone rolling device
* Seaparate moveable control panel and foot pedal
* Suitable for CE standard.
SLIP ROLLS: 3000 X 10.0MM BENZEL
SKU:
ROL131490
* Two rolls powered by gearbox and gear system
* Swing out end enables complete cylinder to be removed
* Heavy duty steel welded main frames
* Mobile control panel with foot pedals
* Precision ground rolls with wiring grooves
* Safety wire interlock system with emergency shut-off
* Motorised up & down top roll for curving adjustment
ER INITAL PINCH ROLING MACHINE: 2000 X 4.0MM
SKU:
ROL131502
* Initial pinch rolls with pre-bending
* Motorised up & down rear curving roll enables quick & easy pre-bending
* Digital readout display on rear curving roll position
* Mobile foot pedal control with digital readout display
* Two rolls are powered by reduction gearbox drive system
* Swing out top roller enables cone or cylinder to be removed
* Safety wire interlock system with emergency shut-off
* Rolls include wiring grooves
SLIP ROLLS: 1500MM X 6.0MM BENZEL 5.5KW
SKU:
ROL131525
GEAR SETS: TO SUIT ROL132000
SKU:
ROL132001
