| DESCRIPTION | Slip Rolls Width 3000mm |
|---|---|
| CAPICITY MILD STEEL | 6.0mm |
| TOP ROLL DIAMETER | 200mm |
| BOTTOM ROLL DIAMETER | 200mm |
| Minimum Rolling Diameter | 400 mm |
| Curving System Type | Initial Pinch |
| Dimensions (LxWxH) | 4160 x 900 x 1200 mm |
| MAIN MOTOR | 7.5kw |
| WEIGHT NETT/GROSS | 3200Kg |
| VOLUME | 4,4928cm |
Description
SKU : ROL131530
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:

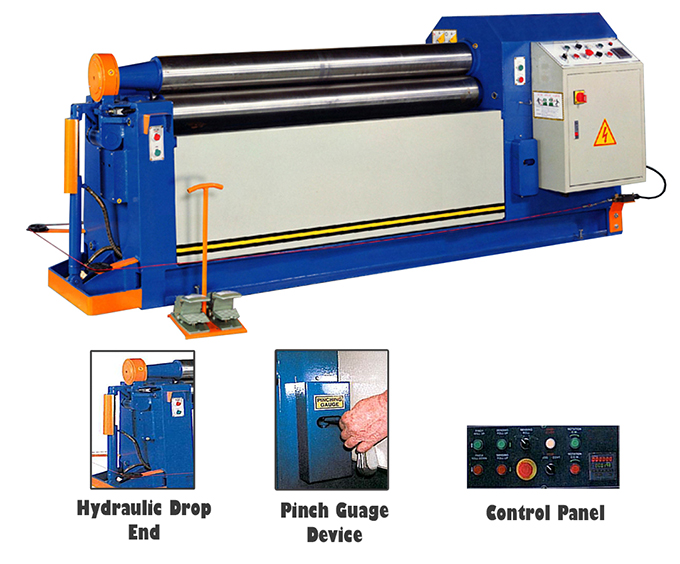

* The Hydraulic Initial pinch rollsa are designed for shop fabricator.
* All rolls are hardened to 50RC to reduce scratching and pitting.
* These are journalled in high quality roller bearing to provide longer life.
* A unique device is the Pinch Gauging Device for added efficiency.
* Standard LED readout provides fast and easy positioning of the rear bending roll for repetitive work.
| Weight | 4800 kg |
|---|
