| DESCRIPTION | Surface Grinder |
|---|---|
| MODEL | SG-820 |
| MAX SURFACE GRINDING | 500 X 280mm |
| MAX DIST SPINDLE TO TABLE | 430mm |
| TABLE SPEED | Manual |
| TABLE GUIDEWAYS | V-TYPE Double Rail & Roller |
| RAPID HEAD ELEVATION | Manual Only |
| AUTO DOWN FEED | Manual Only |
| WHEEL SPEED | 2800rpm |
| WHEEL DIMENSION | 200 x 20 x 31.75mm |
| SPINDLE MOTOR | 1.5 Kw x 3 Phase 400volts |
| HYD PUMP MOTOR | Nil |
| AUTO XFEED MOTOR | Manual |
| RAPID HEAD MOTOR UP/DOWN | Manual |
| WEIGHT NETT/GROSS | 850/750kg |
| VOLUME | 3.2117cm |
| PACKING L x W x H | 1950 x 1350 x 1220mm |
Description
SKU : SGD328200
Price per Unit
$8,300.00 (Exc GST)
$9,545.00 (Inc GST)
FEATURES:
* Quality castings and Precision
* Japanese P4 ball bearing supporting the spindle
* Coolant system with nozzle and flow control valve
* Cast iron machine body and stand for maximum rigidity and smooth operation
* Vertical dial graduations 0.01mm
* Cross travel graduations 0.02mm
* Manual one shot lubrication pump
* Wheel balancing stand
400 x 200mm Magnetic Chuck
* Diamond wheel dresser
* Halogen work light
| Weight | 750 kg |
|---|---|
| Dimensions | 1.45 × 1.16 × 1.96 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
BLADE/SURFACE GRINDER WT624
SKU:
KG-357223
SURFACE GRINDER: MJ115 6X12
SKU:
SGD324900
SURFACE GRINDER: S-618A 3PH
SKU:
SGD327020
* The spindle uses high precision ball bearings and is easy to maintain * Longitudinal guide uses ball slideway * Crosswise quide is made of high quality taflon * They are easy to operate * All movable parts are lubricated simultaneously by operating a single lever * Specialized attachments capable of machining curved surfaces are available as options *
SURFACE GRINDER: PFG2045H
SKU:
SGD327100
Quality castings and Precision Japanese P4 ball bearing supporting the spindle
Coolant system with nozzle and flow control valve
Cast iron machine body and stand for maximum rigidity and smooth operation
Vertical dial graduations 0.01mm
Cross travel graduations 0.02mm
Manual one shot lubrication pump
Wheel balancing stand
400 x 200mm Magnetic Chuck
Diamond wheel dresser
Halogen work light

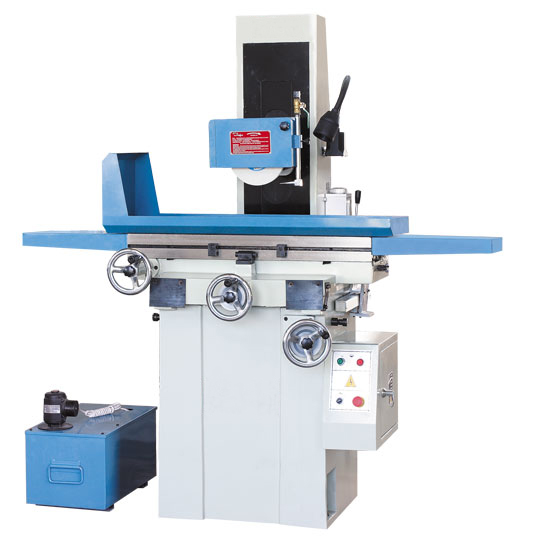

SURFACE GRINDER: M820
