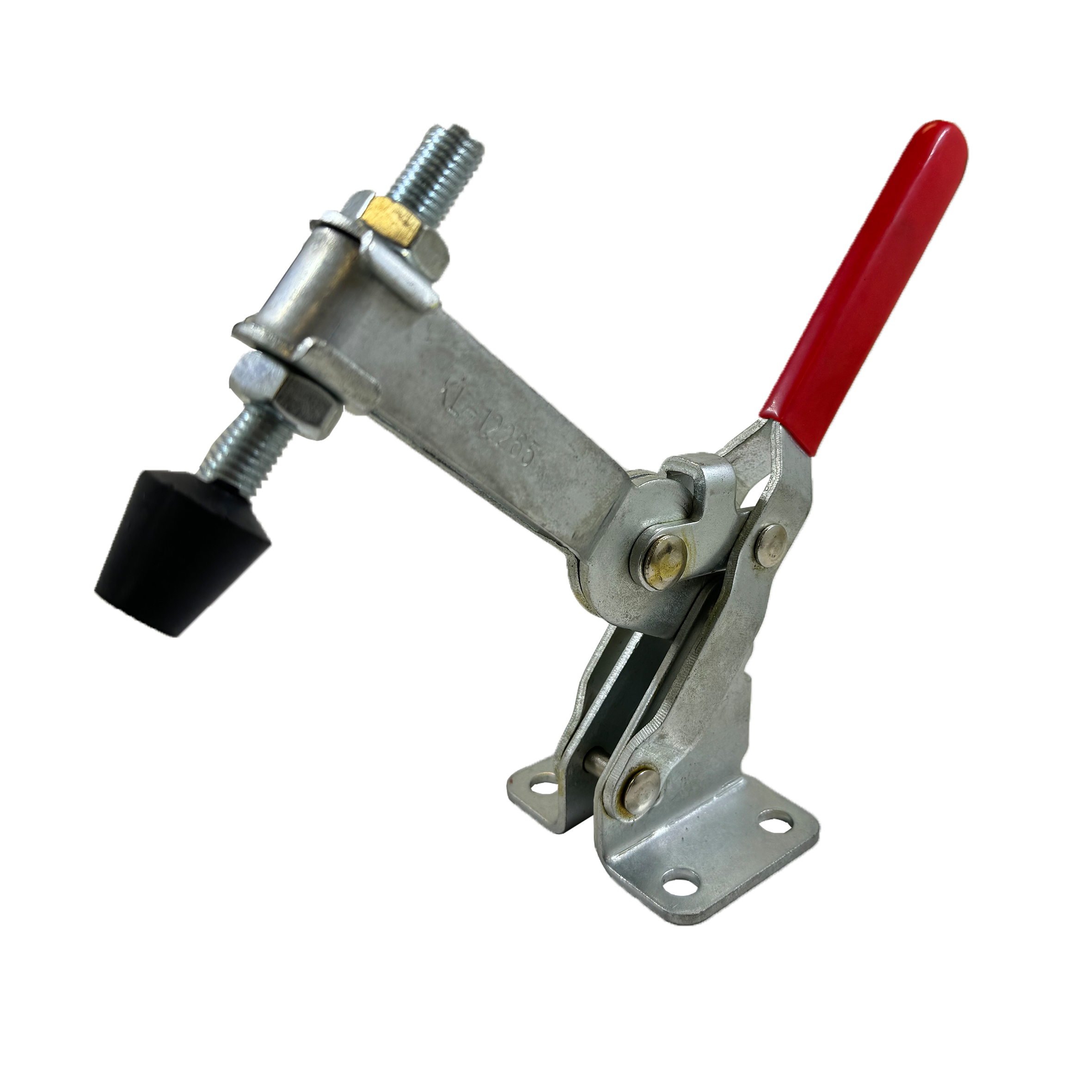

| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | GH-12265 |
| TYPE | Verticle When Closed |
| LENGTH | 80mm |
| CLAMPING FORCE | 180kg |
| WEIGHT NETT/GROSS | 0.619/ 0.621kg |
| VOLUME | 0.0002cm |
| BASE MEASUREMENT | L50.0mm x W67.0mm |
| BASE HOLE MEASUREMENTS | L32.0mm Centres W48.0mm Centres |
| BASE TO ARM | 41.0mm |
Description
SKU : TC-200059
Price per Unit
$39.00 (Exc GST)
$44.85 (Inc GST)
FEATURES:
* This clamp is supplied with spindle assembly and red vinyl hand grip
* Holding capacity 180kg
* Handle is in a vertical position when clamped
* Spindle is fitted with rubber holding pad
| Weight | 0.621 kg |
|---|---|
| Dimensions | 0.1 × 0.04 × 0.04 cm |
