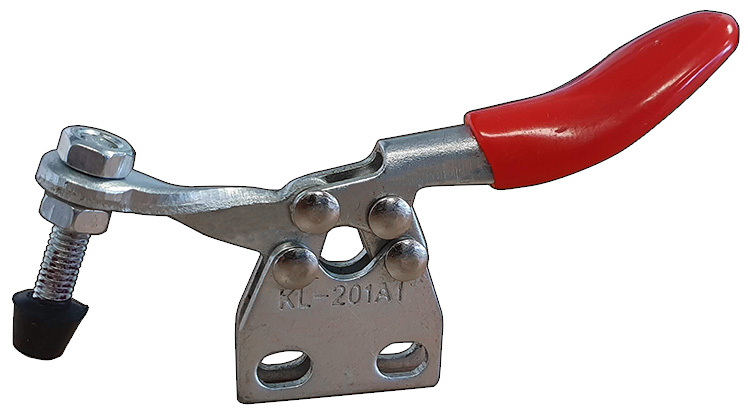

DESCRIPTION | Toggle Clamp |
---|---|
MODEL | GH-201-AL |
TYPE | Horizontal Handle When Lock |
LENGTH | 25.0mm |
CLAMPING FORCE | 270Kg |
WEIGHT NETT/GROSS | 0.030/0.0320kg |
VOLUME | 0.0002cm |
BASE MEASUREMENT | L24.0mm x W9.0mm |
BASE HOLE MEASUREMENTS | L14.0mm Centres |
BASE TO ARM | 10.0mm |
Description
SKU : TC-200360
Price per Unit
$16.00 (Exc GST)
$18.40 (Inc GST)
FEATURES:
* This clamp is supplied with nylon spindle assembly and red vinyl hand grip * Holding capacity 27kg *
Weight | 0.32 kg |
---|---|
Dimensions | 0.14 × 0.04 × 0.04 cm |
