| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | GH-304-E |
| TYPE | Push/Pull |
| STROKE | 45.0mm |
| CLAMPING FORCE | 386Kg |
| WEIGHT NETT/GROSS | 0.604/ 0.606kg |
| VOLUME | 0.0011cm |
| BASE MEASUREMENT | L59.0mm x W58.0mm |
| BASE HOLE MEASUREMENTS | L42.0mm Centres W42.0mm Centre |
| BASE TO RAM | 28.0mm |
Description
SKU : TC-200660
Price per Unit
$36.00 (Exc GST)
$41.40 (Inc GST)
FEATURES:

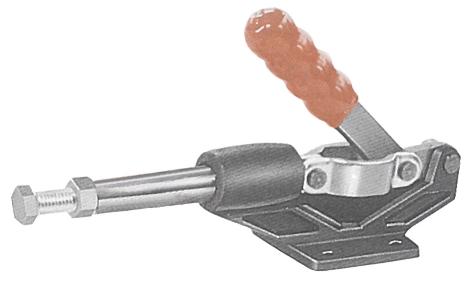

The GH-304E is a horizontal push clamp
* Cast base with 4 mounting holes
* handle sits at 45 degrees when in the locked position
* The plunger has a threaded end and is supplied with end screw for fine adjustment
* This clamp is supplied with red vinyl hand grip
* Holding capacity 386kg *
Very solid clamp and is highly recomended for horizontal clamping
| Weight | 0.606 kg |
|---|---|
| Dimensions | 0.16 × 0.1 × 0.07 cm |
