| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | GH-305-C |
| TYPE | Push/Pull |
| SPROKE | 40.0mm |
| CLAMPING FORCE | 227Kg |
| WEIGHT NETT/GROSS | 0.340kg |
| VOLUME | 0.0008cm |
| BASE MEASUREMENT | L52.0mm x W57.0mm |
| BASE HOLE MEASUREMENTS | L36.0mm Centres W42.0mm Centres |
| BASE TO RAM | 22.0mm |
Description
SKU : TC-200640
Price per Unit
$34.00 (Exc GST)
$39.10 (Inc GST)
FEATURES:

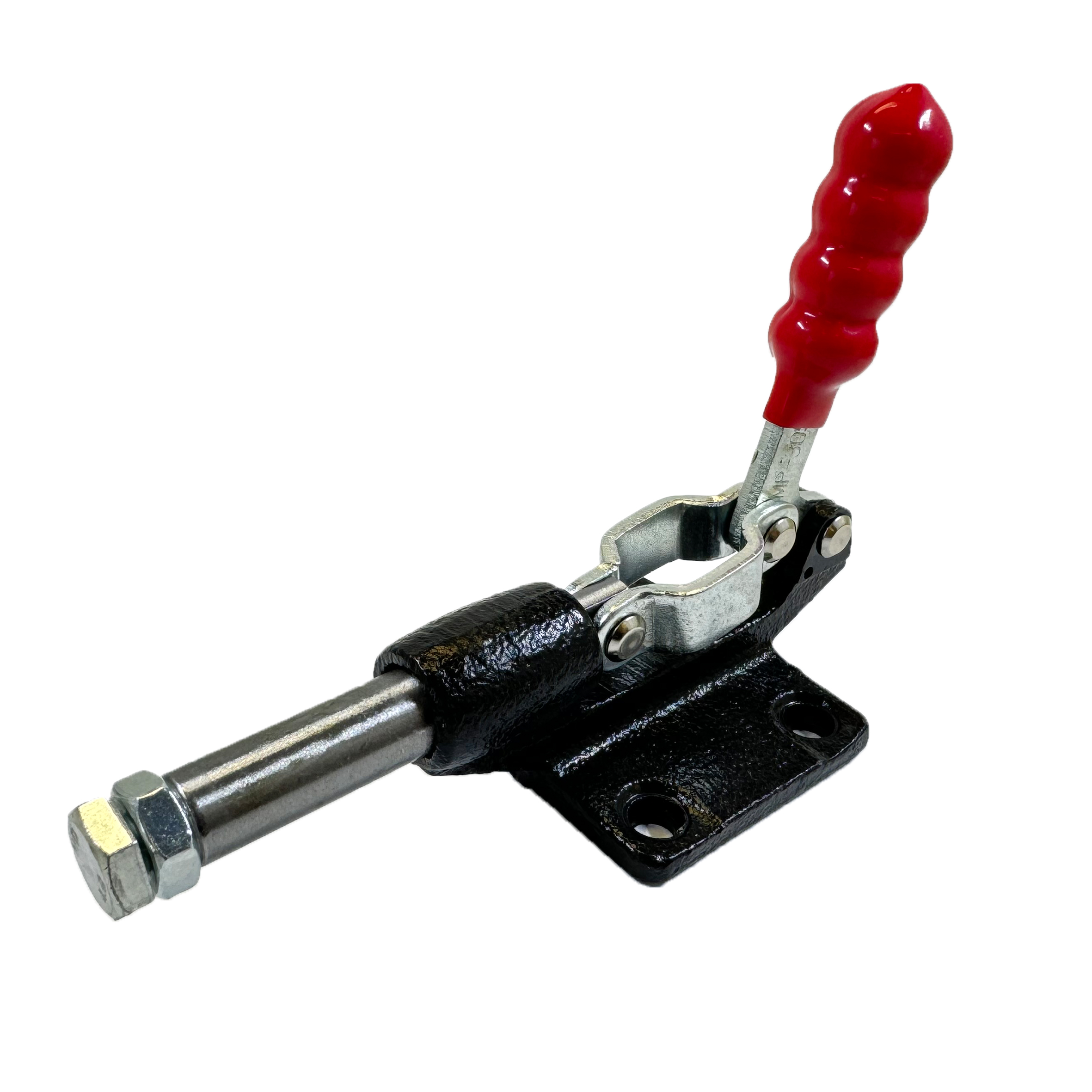

The GH-305E is a horizontal push clamp
* Cast base with 4 mounting holes
* handle sits at 90 degrees when in the locked position
* The plunger has a threaded end and is supplied with end screw for fine adjustment
* This clamp is supplied with red vinyl hand grip
* Holding capacity 227kg
Very solid clamp and is highly recomended for horizontal clamping
