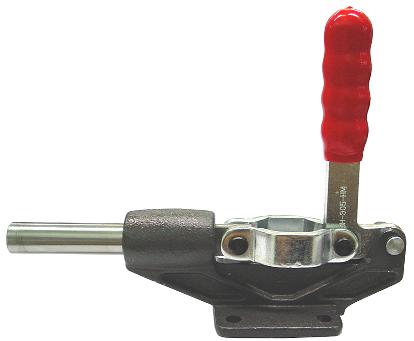

| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | GH-305HM |
| TYPE | Push/Pull Tog/Clamp |
| ARM LENGTH | 70.0mm |
| CLAMPING FORCE | 680Kg |
| WEIGHT NETT/GROSS | 1.451/1.453kg |
| VOLUME | 0.0015cm |
| BASE MEASUREMENT | L73.0mm x W 72.0mm |
| BASE HOLE MEASUREMENTS | L51.0mm Centres W51.0mm Centres |
| BASE TO RAM | 38.0mm |
Description
SKU : TC-200722
Price per Unit
$48.00 (Exc GST)
$55.20 (Inc GST)
FEATURES:
* The GH-305HM clamp is suitable for light medium or heavy duty operations
* Each clamp is supplied with a ductile iron base, precision machined for flatness
* Close tolerances between the base and plunger allow these clamps to be used for pin locating gauges as well as clamping devices
* Plunger locks in extended or retracted position
* These clamps are supplied with adjustable end screw for fine adjustment
| Weight | 1.453 kg |
|---|---|
| Dimensions | 0.18 × 0.12 × 0.07 cm |
