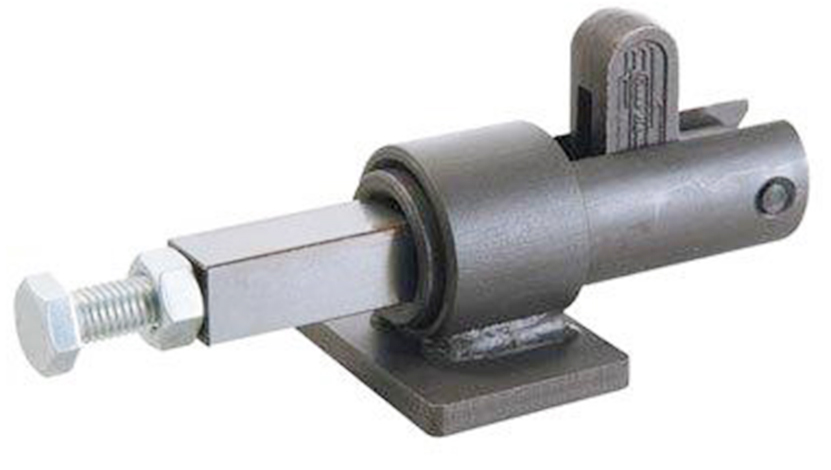

| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | GH-30609 |
| TYPE | Push Type |
| LENGTH | 90.0mm |
| CLAMPING FORCE | 1136kg |
| WEIGHT NETT/GROSS | 0.345kg |
| VOLUME | 0.0005cm |
| BASE MEASUREMENT | L51.0mm x W70.0mm |
| BASE HOLE MEASUREMENTS |
Description
SKU : TC-201625
Price per Unit
$58.00 (Exc GST)
$66.70 (Inc GST)
FEATURES:
* This clamp is designed for air assisted clamping
* Square ram for precision and accurate movement
* Aia acuator attaches to rear swivel pin
| Weight | 0.345 kg |
|---|---|
| Dimensions | 0.18 × 0.06 × 0.05 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products

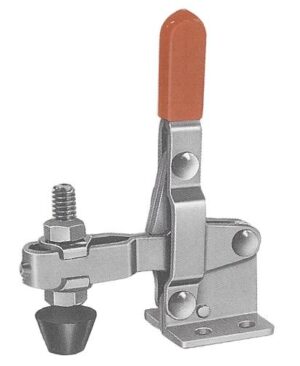

TOGGLE CLAMP: GH-12130 VERT
SKU:
TC-200058
TOGGLE CLAMP: GH-201-B HORZ
SKU:
TC-200380

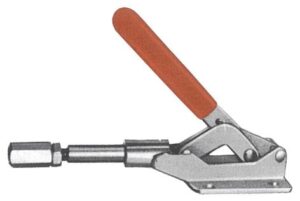

TOGGLE CLAMP: GH-303-E HORZ PUSH TYPE
SKU:
TC-200600
* * The GH-303E clamp is suitable for light medium or heavy duty operations
* Each clamp is supplied with a pressed steel base
* Close tolerances between the base and plunger allow these clamps to be used for pin locating gauges as well as clamping devices
* These clamps are supplied with adjustable end screw for fine adjustment
* The GH-303E clamp is supplied with red vinyl hand grip
* Holding capacity is 454kg
* Stroke is 25.0mm with handle locking in a 45deg position
T
TOGGLE CLAMP: GH-305HM HORZ PUSH TYPE
SKU:
TC-200722
* The GH-305HM clamp is suitable for light medium or heavy duty operations
* Each clamp is supplied with a ductile iron base, precision machined for flatness
* Close tolerances between the base and plunger allow these clamps to be used for pin locating gauges as well as clamping devices
* Plunger locks in extended or retracted position
* These clamps are supplied with adjustable end screw for fine adjustment
TOGGLE CLAMP: GH-202-F HORZ SIDE MOUNT
SKU:
TC-200740

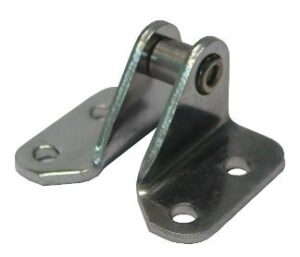

HARSP: GH-451-SS-LP STAINLESS STEEL
