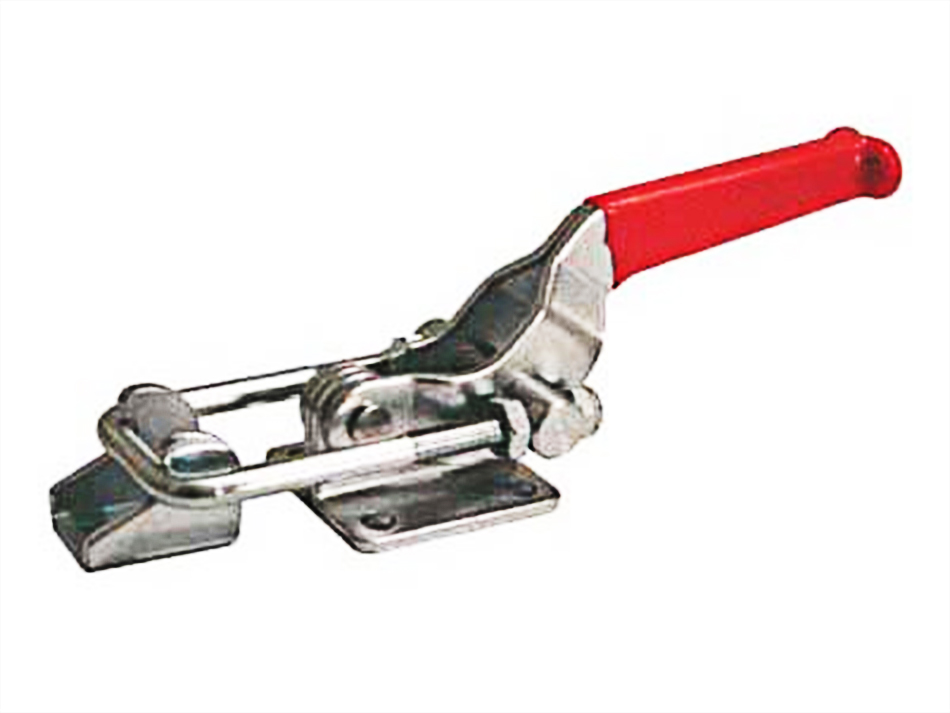

| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | GH-40371 |
| TYPE | Latch |
| ARM LENGTH | 79.4mm |
| THREAD SIZE | M8 |
| CLAMPING FORCE | 1818Kg |
| WEIGHT NETT/GROSS | 0.677kg |
| VOLUME | 0.0009cm |
| BASE MEAREMENTS | L61.0mm x W55.0mm |
| BASE HOLE MEASUREMENTS | L42.0mm Centres W35.0mm Centres |
| HARSP MOUNT |
Description
SKU : TC-200958
Price per Unit
$38.00 (Exc GST)
$43.70 (Inc GST)
FEATURES:
* Latch type toggle clamp
* Comes complete with harsp
* Adjustable arms
* Quick release clamp
| Weight | 0.677 kg |
|---|---|
