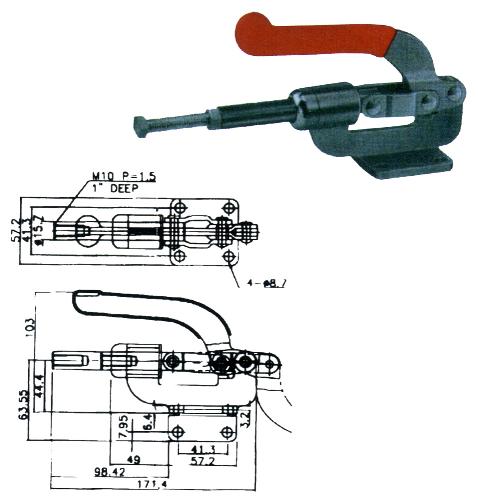

| DESCRIPTION | Toggle Clamp |
|---|---|
| MODEL | SDY253C-2 |
| TYPE | Push Type |
| LENGTH | 42.0mm Travel |
| CLAMPING FORCE | 365Kg |
| WEIGHT NETT/GROSS | 0.230kg |
| VOLUME | 0.0005cm |
| BASE MEASUREMENT | L58.0mm x W57.0mm |
| BASE HOLE MEASUREMENTS | L42.0mm Centres W41.0mm Centres |
| BASE TO RAM | 36.0mm |
Description
SKU : TC-202230
Price per Unit
$28.00 (Exc GST)
$32.20 (Inc GST)
FEATURES:
* This toggle clamp is the push type with the handle in a forward posistion when locked
* Plunger has 42mm of travel
* Base mount
| Weight | 0.23 kg |
|---|---|
| Dimensions | 0.14 × 0.06 × 0.06 cm |
