MIN / MAX .DIAMETER | 5 / 50 mm |
---|---|
MIN BENDING RADDIUS | 80 mm |
ABRASIVE BELT SIZE | 622 X 30mm |
DISC MOTOR | 1.1kw |
ABRASIVE BELT MOTOR | 2.2kw |
BELT SPEED | 10 – 30 m/sec |
NET WEIGHT | 195 Kg |
VOLUME | 0.9433cm |
DIMENSION | 770 x 980 x 1250mm |
Availability : Enquire Now
Price per Unit
ex-gst
$0.00Inc-gst

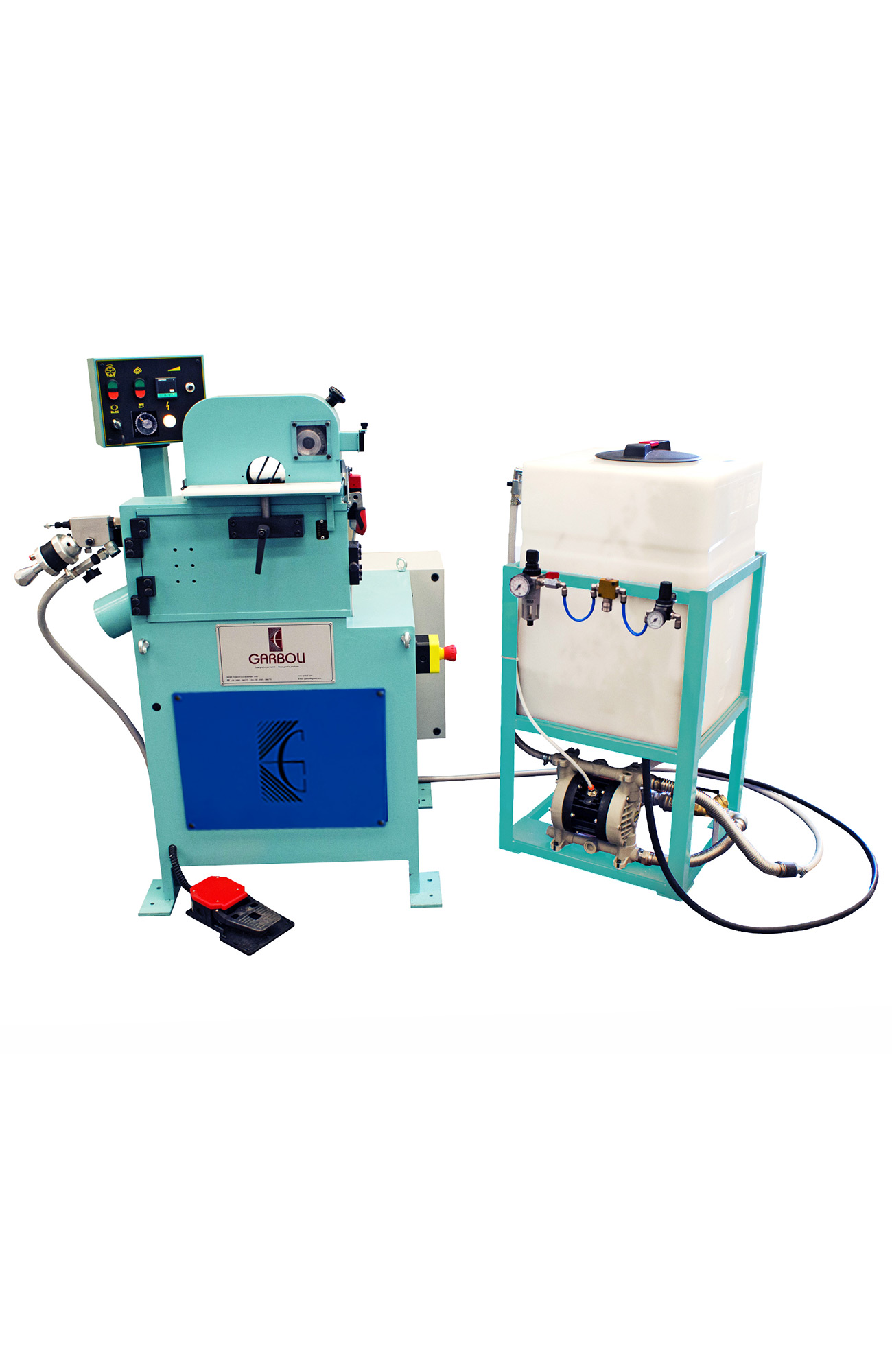

$0.00TUBE POLISHING: LPC160 MIRROR POLIHING
Description
SKU : BM-100250
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
New technology: orbital mirror polishing machine with solid paste dispenser
(optional for liquid paste), for mirror finishing and buffing on straight and bent tubes made
of stainless steel, brass, iron, or any other kind of metal having round, oval or irregular
section, from 5 to 50 mm.
For some particolar applications, through abrasive belts, is also suitable for grinding and surfaces preparation for mirror polishing.
Machine is supplied complete with inverter device, to allow a proper “mirror polishing
Weight | 195 kg |
---|---|
Dimensions | 0.77 × 0.98 × 1.25 cm |
