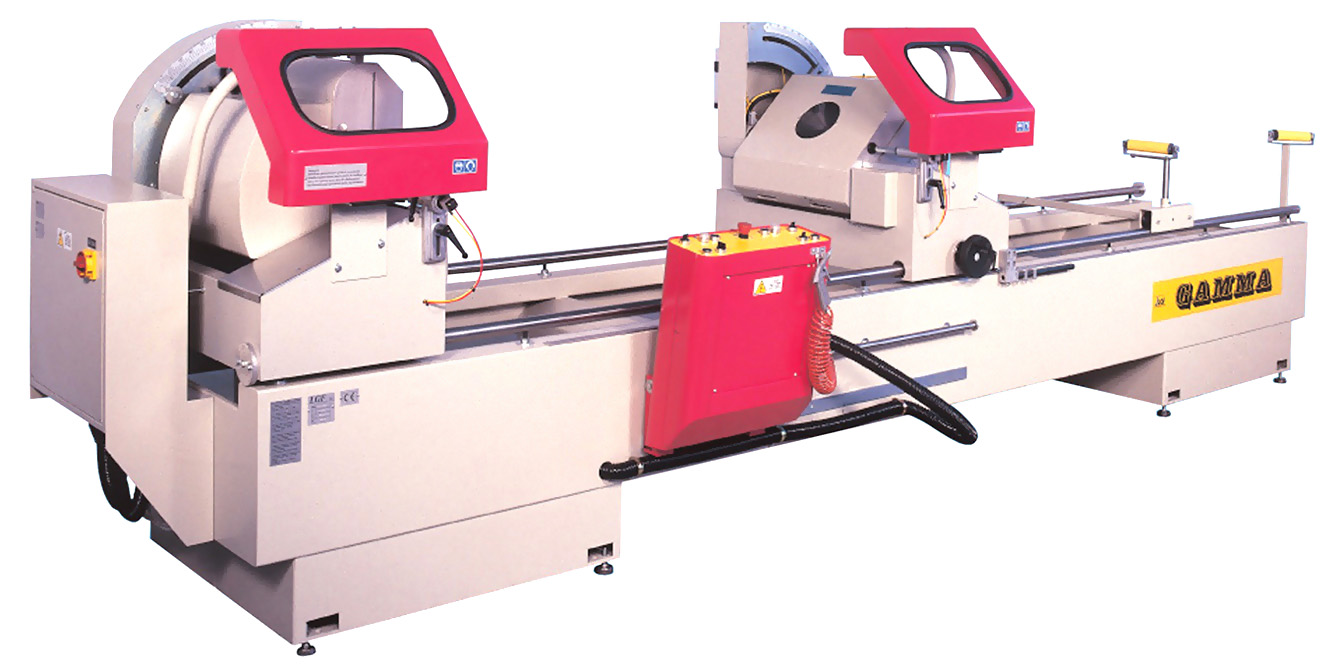

BRAND | LGF Gamma Swing Digital |
---|---|
TYPE | Double Head Cut Off Saw |
BLADE SIZE | 500mm |
CLAMPING | Air Clamps |
MOTOR | 3Hp |
VOLTAGE | 3 Phase 380V |
CUTTING CAPACITY | 220mm |
SPINDLE SIZE | 30.0mm |
WEIGHT NETT / GROSS | 1200.00/1400.00kg |
VOLUME | 20,000cm |
Availability : Enquire Now
Price per Unit
ex-gst
$81,345.00Inc-gst
$93,546.75TWIN HEAD SAW:GAMMA SWING DIG
Description
SKU : ALU302200
Price per Unit
$81,345.00 (Exc GST)
$93,546.75 (Inc GST)
FEATURES:
* Equipped with electronic positioner.
* With 10” colour screen and touchscreen system.
* Radial sliding of the saw carriage.
* Pneumatic tilting heads from 90° to 45°.
* USB port to save/upload cutting lists and programmes.
* Available in 4mt or 5mt bed length.
* Can be fitted with a 500mm, 530mm or 550mm blade.
* Full protection of the saw blades with automatically closing hoods.
* Horizontal pneumatic clamping system with rubber pads.
* Automatic nebulizer lubrication.
