| POWER | 21 KVA |
|---|---|
| DUTY CYCLE | 35% 370, 60% 280 100% 220 |
| INPUT VOLTAGE | 400 Volt 3Phase |
| INSULATION | H |
| WEIGHT NETT/GROSS | 119 Kg |
| VOLUME | 2.5 |
Description
SKU : WE-078831
Price per Unit
$2,800.00 (Exc GST)
$3,220.00 (Inc GST)

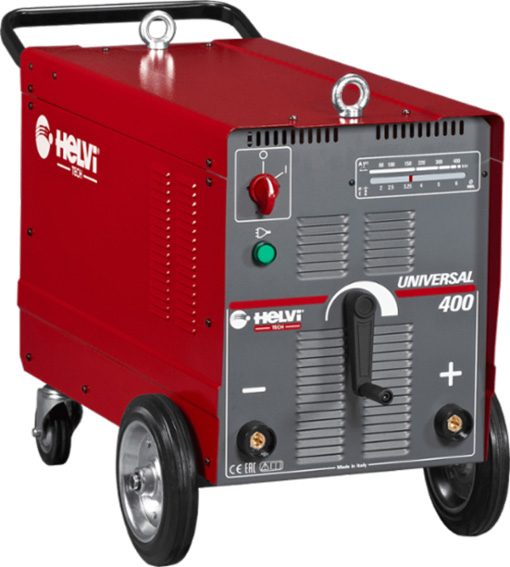

FEATURES:
* Three-phase DC welding units, on wheels, with cooling fan, suitable for welding
all types of electrodes
* Stepless control of the welding current by magnetic shunt
* Made in Italy
| Weight | 119 kg |
|---|
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
WELDER: ARC EUROARC 170
SKU:
WE-078822
WELDER: ARC HELVI GALILEO 175
SKU:
WE-078827
* Optimum welding performance with all types of commercial electrodes
* They come with overvoltage, over temperature and anti-sticking control
* They are equipped with STICK / TIG (lift arc) selector * Can be connected to remmote power source with long connection cable
* Ideal for maintenance jobs and workshop applications. * Made in Italy.

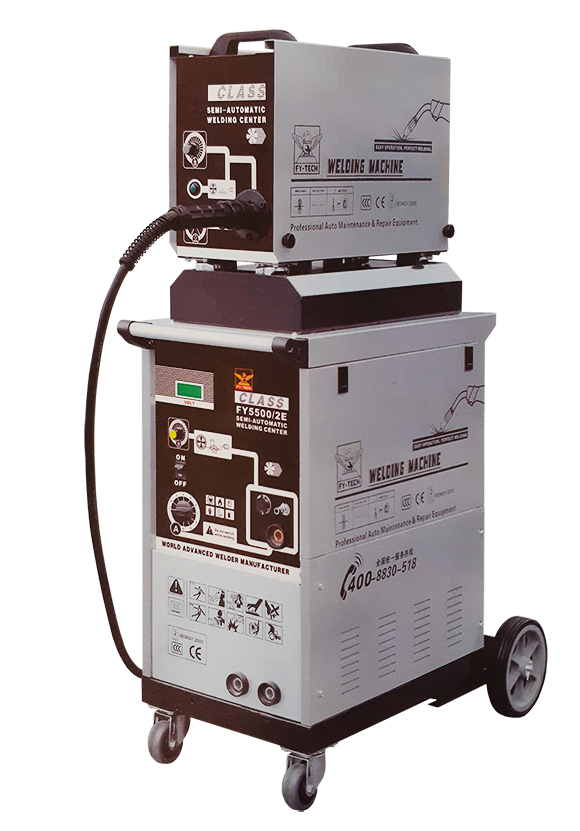

MIG WELDER: FY-TECH 5500/2E 500A 3PH
SKU:
WMG100470
* The FY 5500 series MIG semi-automatic gas shielded welding machines use the most advanced INFINEON IGBT inverter with dual full bridge soft switch circuit technology suitable for all posistion welding and for high speed welding of sheetmental and medium plates
* This is a core technology to take advantage of the inverter poer source to realise the soft switching state of the no-load, short cercuit and load
* This decreasess the switching stress and also increase the reliability of the unit
* This unit also has the characteristics of Gas Matal Arc Welding (GMAW) and inverter technology with constant voltage and current output
* Used mainly for the welding of ferrous metals such as copper, aluminum, stainless steel, high carbon steel as well as being used in the construction industry for pipe welding, structial steel, shipyards and machinery manufacturing *
MIG WELDER: FY-TECH 8000L-250 1PH COMBINATION TIG
SKU:
WMG100480
MIG WELDER: 500A GMAW DIGITAL PULSE IP215
SKU:
WMG100530
* This mig welding unit GMAW-500 comes with seperate wire feeder which sits on top of the welder
* All digital control system has accurate control on welding process and can realise splatter-free welding
* Friendly operation interface and synchronous adjustments, simple, intuitive and easy to control
* Built in expert database and intelliigent parameter combinations realise high quality welding
* By adopting power switch control technology, it can greatly improve the reliability of the whole machine
* Obvious welding feature improvement by turning inductance control knob, making the operators enjoy outstanding welding welding experance
* Brand new air duct design and dust device design to ensure more stable operation
* This machine will offer splatter free opperation when welding, Carbon steel, Stainless steel, Aluminum and Magnesium alloy
TIG WELDER: GALILEO 215 MMA/TIG 230V
SKU:
WTG100134
TIG WELDER: 200A AC/DC 1PH
SKU:
WTG100140
TIG WELDER: 200A AC/DC: TROLLEY
SKU:
WTG100151
The TIG200DA is a 240V square wave AC/TC TIG inverter welder incorporating full TIG functionality including AC balance control, pre gas, down slope, post gas, variable pulse parameters, HF start with 2/4T trigger control. The HF arc start provides easy arc ignition leaving no tungsten inclusion and no contamination of the tungsten electrode. The Down Slope and Post Gas combined with the 2/4T trigger function gives you full control of the welder allowing you to control the start and finish of the weld process at a professional level. AC balance control lets you set the AC TIG arc for cleaning of the oxide layer on aluminium and adjustment for a deeper penetrating weld. Addition of the Foot Control provides variable amperage adjustment during welding.
