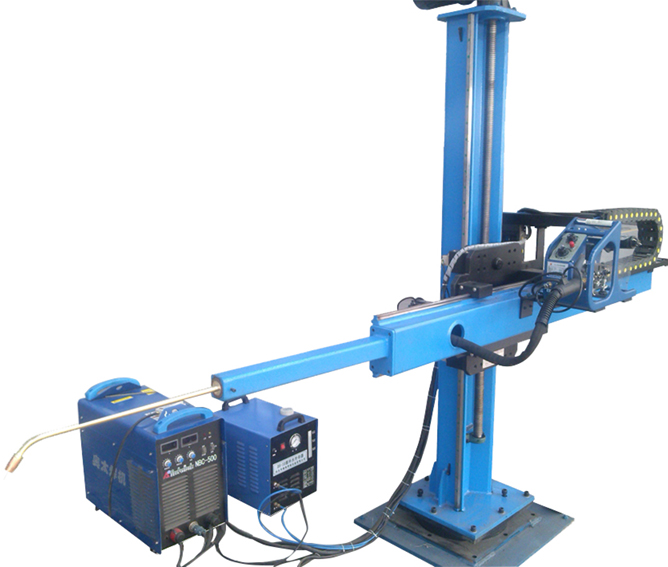

| DESCRIPTION | Welding Column & Boom |
|---|---|
| MODEL NUMBER | CZJL-1*1 |
| VERTICLE LIFT | 1000mm |
| HORIZONTAL EXTENSION | 1000mm |
| LIFTING SPEED | Manual |
| BOOM CONTROLLER | |
| BOOM TRAVEL | Power |
| BOOM LOADING | 100kg |
| BASE | Swivel – Manual |
| WEIGHT NETT/GROSS | 960kg |
| VOLUME | 0.3774cm |
Description
SKU : WER1000890
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* Welding Column & Boom with manual swivel base
* Including: Column, Boom, Control box
* Effective verticle stroke = 1 metres
* Effective horizontal stroke = 1 metres
* Manual rise and fall by handle on top of column
* Boom loading at extremity = 300kg
* Extending speed + VDF 100-1000m/min
* Welding machines not included
| Weight | 960 kg |
|---|---|
| Dimensions | 1.85 × 0.4 × 0.51 cm |
