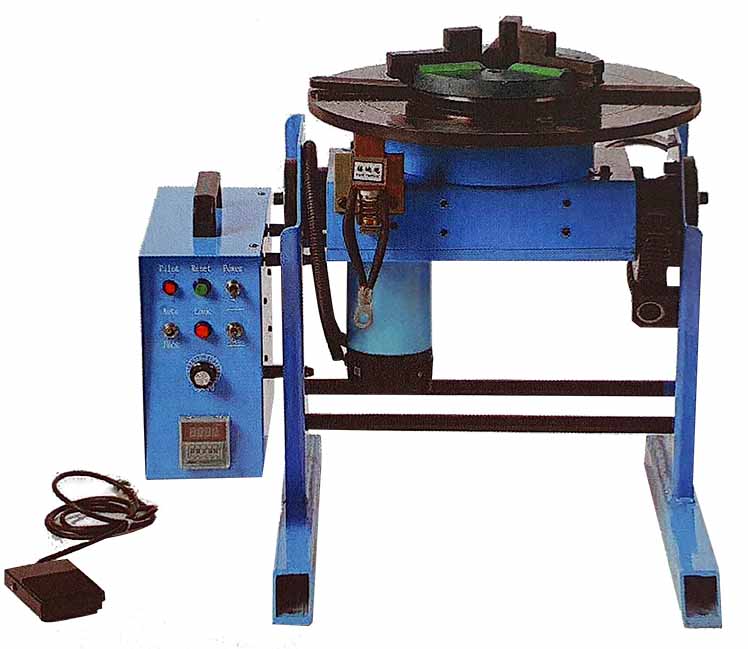

DESCRIPTION | Welding Positioner |
---|---|
MODEL NUMBER | BWJ-2 (170 Hole) |
TABLE DIAMETER | 450mm |
HORIZONTAL CAPACITY | 100kg |
VERTICLE CAPACITY | 50kg |
ROTATIONAL SPEED | 0.05 – 0.5rpm |
TILT ANGLE | 0 – 90deg (Manual) |
HEIGHT OF TABLE | 500mm |
TABLE HOLE | 170mm |
MOTOR POWER | 120w 230V 1 Phase 50hz |
CHUCK OPTIONS | KD-300/400 |
WEIGHT NETT/GROSS | 65.0/70Kgs |
VOLUME | 0.3774cm |
PACKING SIZE (L X W x H) | 1850 x 400 x 510mm |
Description
SKU : WER1000612
Price per Unit
$3,900.00 (Exc GST)
$4,485.00 (Inc GST)
FEATURES:
– 240V Welding positioner
– Can be titled from 0-90 degrees
– Foot Pedal for convenient operation
– Comes with a chuck
– Compatible with the KD series chucks.
– Variable speed controller allows you to dial in the right speed.
– Responds quickly, starts and stops very smoothly
– Suitable for Welding, Cutting, Grinding, Polishing, Finishing, Painting, Assembly, Dissemble, Shot Blasting, Runner Riser Cutting, Machining etc
Weight | 65 kg |
---|---|
Dimensions | 1.85 × 0.4 × 0.51 cm |
Specifications
Description
Reviews (0)
Be the first to review “WELDING POSITIONER: 450MM TABLE V/SPEED” Cancel reply
Shipping & Delivery
Related products
WELDING POSITIONER: 1600MM TABLE V/SPEED H/DUTY
SKU:
WER1000638
$0.00
- 3 Phase Welding positioner
- Can be titled from 0-90 degrees
- Foot Pedal for convenient operation
- Comes with a remote with controls.
- Compatible with the KD series chucks.
- Variable speed controller allows you to dial in the right speed.
- Responds quickly, starts and stops very smoothly
- Suitable for Welding, Cutting, Grinding, Polishing, Finishing, Painting, Assembly, Dissemble, Shot Blasting, Runner Riser Cutting, Machining etc
WELDING CHUCK: 400MM SELF CENTERING
SKU:
WER1000708
$860.00
WELDING COLUMN & BOOM: CZJZ STATIONARY 2000 X 4000MM
SKU:
WER1000840
$0.00

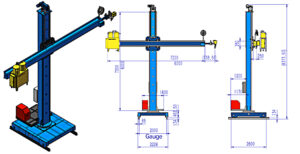

WELDING COLUMN & BOOM: MANUAL 6000 X 6000MM
SKU:
WER1000870
$0.00
* Welding Column & Boom fixed base
* Including: Column, Boom, Control box, Elevating mechanism
* Effective verticle stroke = 6 metres
* Effective horizontal stroke = 6 metres
* Boom loading at extremity = 300kg
* Extending speed + VDF 100-1000m/min
* Verticle lifting speed - 1000m/min
* Welding machines not included
WELDING COLUMN & BOOM: STATIONARY 3000 X 3000MM
SKU:
WER1000880
$0.00
* Welding Column & Boom fixed base
* Including: Column, Boom, Control box, Elevating mechanism
* Effective verticle stroke = 3 metres
* Effective horizontal stroke = 3 metres
* Boom loading at extremity = 100kg
* Extending speed + VDF 100-1000m/min
* Verticle lifting speed - 1000m/min
* Welding machines not included
WELDING COLUMN & BOOM: STATIONARY 1000 X 1000MM
SKU:
WER1000890
$0.00
* Welding Column & Boom with manual swivel base
* Including: Column, Boom, Control box
* Effective verticle stroke = 1 metres
* Effective horizontal stroke = 1 metres
* Manual rise and fall by handle on top of column
* Boom loading at extremity = 300kg
* Extending speed + VDF 100-1000m/min
* Welding machines not included
WELDING COLUMN & BOOM: 1000 X 1500MM W/WELDER AND POSITIONER
SKU:
WER1000896
$0.00
* Welding Column & Boom with manual swivel base
* Column and Boom are manual settings
* Effective verticle stroke = 1 metres
* Effective horizontal stroke = 1 metres
* Manual rise and fall by handle on top of column
* Boom loading at extremity = 10kg
* Welding machines 400 Tig with wire feed
* Welding positioner is the BWJ-1 400mm with 400mm chuck
* Comes with 10 Litre wate tank & Pneumatic Gun
Also includes welding torch and oscillator
