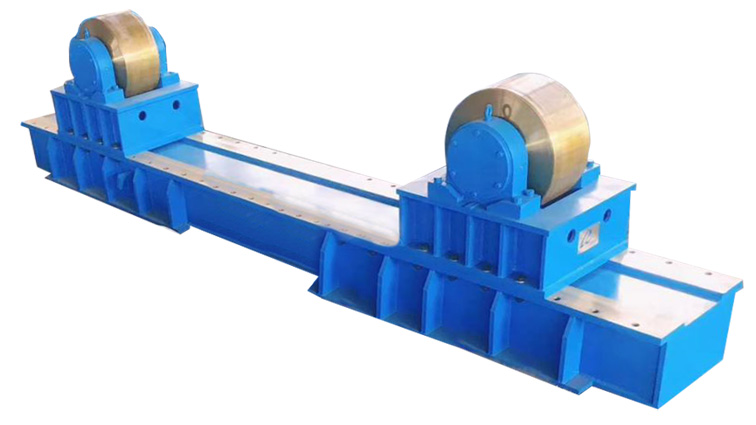

| DESCRIPTION | Welding Rotator Idler Only |
|---|---|
| MODEL NUMBER | WE-20 |
| PAYLOAD | 20 Ton |
| WORKPIECE DIA | 300 – 3500mm |
| PU WHEEL DIA x WIDTH | 300 – 200mm |
| TYPE | Convention Type |
| ROLLER SPEED | Idler – No Drive |
| INCLUDES | 1 x Non-Powered Roller Idler |
| WEIGHT NETT/GROSS | 960kg |
| VOLUME | 0.3774xm |
| PACKING SIZE L x W x H |
Description
SKU : WER1000222
Price per Unit
$4,800.00 (Exc GST)
$5,520.00 (Inc GST)
FEATURES:
* This welding rotator idler is an add on to the normal set
* Wheels are PU coated
* Suitable for pipes from 300mm to 3500mm
* This is the non powered idler rotator only and is an ideal add on when handling longer sections of workpiece.
| Weight | 960 kg |
|---|---|
| Dimensions | 1.85 × 0.4 × 0.51 cm |
