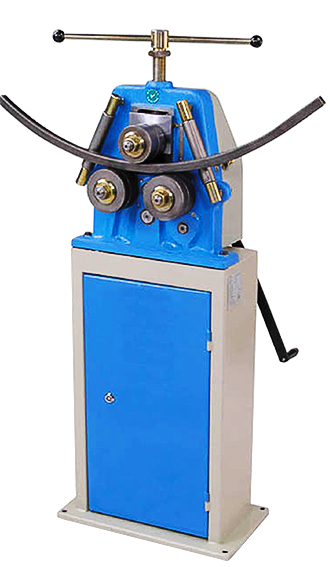

MODEL | RBM10 |
---|---|
TYPE | Ring Roller |
ROLL DIAMETER | 30.0mm |
SHAFT DIAMETER | 30.0mm |
BENDING SPEED | Manual |
CAPACITY ROUND SOLID | 16 Dia |
CAPACITY PIPE | 30.0mm Dia X 1.0mm |
CAPACITY SQUARE SOLID | 20 X 20mm Min Dia 500mm 10 x 10mm Min Dia 160mm |
CAPACITY RECT SOLID | 30 x 10.0mm Min Dia 400mm 20 x 5.0mm Min Dia 160mm |
CAPACITY ANGLE IRON | N.A. |
CAPACITY SQUUARE BOX | 30 X 30 X 1.0mm |
MOTOR | Manual rotation |
WEIGHT NETT/GROSS | 158 / 170kg |
DIMENSION | 590 X 350 X 860 mm |
VOLUME | 0.1776cm |
- You cannot add that amount of "SECTIONAL ROLL MACH: G76B 16-76 ROUND & SQUARE TUBE" to the cart because there is not enough stock (0 remaining).
Description
SKU : SRM131649
Price per Unit
$2,400.00 (Exc GST)
$2,760.00 (Inc GST)
FEATURES:
* Special cast frame. shafts are hardened with special steel
* Rollers are hardened and ground.
Weight | 170 kg |
---|
